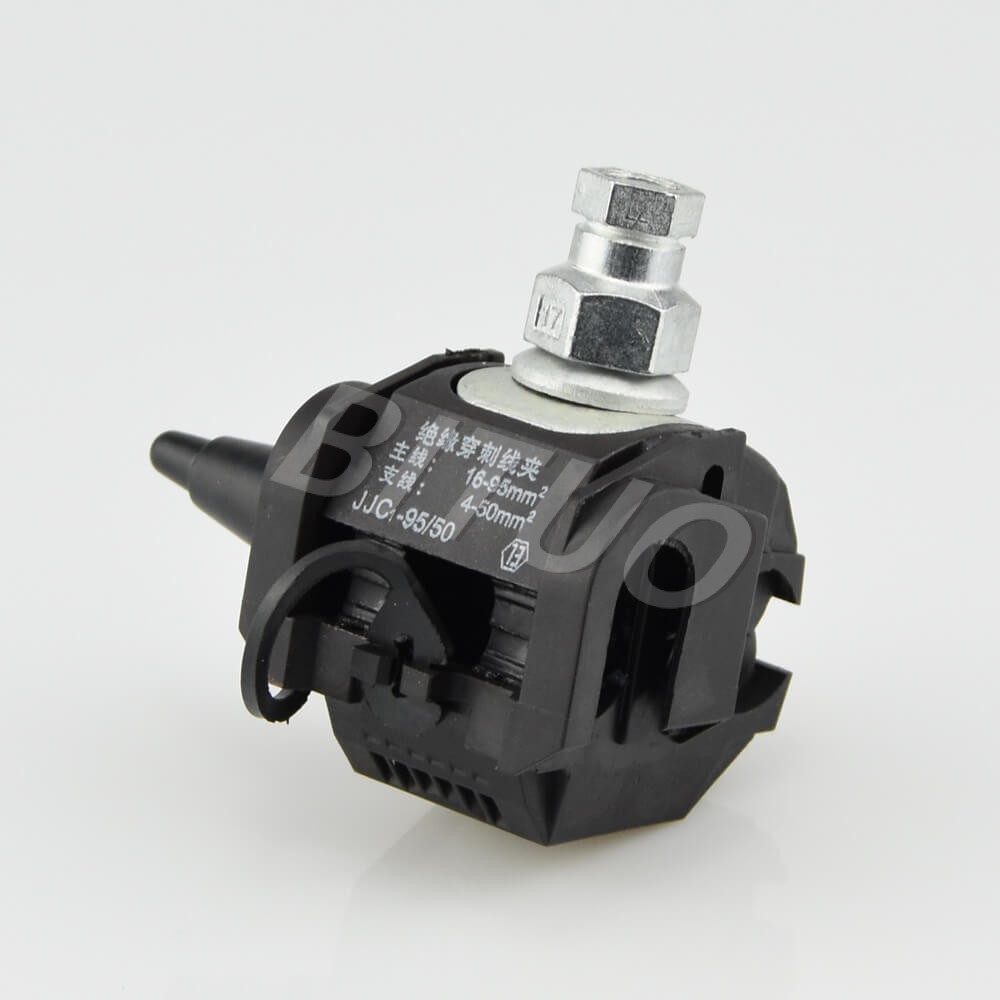

JJC-9550 Insulation Piercing Clamp

JJC-9550 Insulation Piercing Clamp: Secure and Reliable Electrical Connections

The JJC-9550 Insulation Piercing Clamp is a high-quality, efficient, and reliable connector designed to ensure secure electrical connections in various systems. Ideal for both industrial and residential applications, this clamp offers an advanced solution for connecting wires without the need for stripping insulation, providing an efficient way to maintain electrical systems. Whether in power distribution networks, control panels, or telecommunications, the JJC-9550 ensures a stable, safe, and durable connection even in the most demanding environments. With its robust construction and high-performance capabilities, this insulation piercing clamp is engineered for ease of use, safety, and long-lasting reliability.

Key Features and Specifications

1. Electrical Rating: 1KV

   The JJC-9550 Insulation Piercing Clamp is rated for 1KV, making it suitable for medium to high voltage applications. This high voltage tolerance ensures that the clamp can be used reliably in a variety of systems, from residential power distribution to industrial machinery, where maintaining a secure electrical connection is critical. Its 1KV rating allows it to perform well under demanding electrical conditions.

2. Metal Material: Copper

   Copper is used for the metal components of the JJC-9550, ensuring superior electrical conductivity. Copper is known for its excellent ability to conduct electricity with minimal resistance, which minimizes energy loss and improves the efficiency of electrical systems. The copper construction also contributes to the clamp’s durability and long-term performance, allowing it to handle high current loads reliably over extended periods.

3. Plastic Material: Fire-Retardant

   For insulation, the JJC-9550 uses fire-retardant plastic, a crucial safety feature that helps prevent the spread of fire in case of electrical faults. This material is specifically designed to reduce the risk of fires, ensuring safety during operation. The fire-retardant properties make it an ideal choice for both residential and industrial systems, where safety and fire prevention are top priorities.

4. Wire Gauge Compatibility: 16mm² to 95mm² / 4mm² to 50mm²

   The JJC-9550 is compatible with a wide range of wire gauges, making it highly versatile. It accommodates wire sizes ranging from 16mm² to 95mm² for larger cables, and 4mm² to 50mm² for smaller wires. This broad compatibility allows the clamp to be used in a variety of electrical systems, from low-voltage wiring to high-power industrial connections, providing flexibility for different installation requirements.

5. Temperature Range: -25°C to +85°C

   The JJC-9550 operates efficiently across a wide temperature range of -25°C to +85°C, making it suitable for both indoor and outdoor applications. Whether used in cold or hot environments, this clamp maintains its performance, ensuring reliable electrical connections even under extreme temperature conditions. Its wide temperature tolerance ensures that it can perform in a variety of settings, including industrial, residential, and commercial applications.

6. OEM/ODM Availability

   The JJC-9550 Insulation Piercing Clamp is available for OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services. This customization option allows businesses to create tailor-made solutions to meet specific needs. Whether it is for custom designs, branding, or packaging, the ability to personalize the product makes the JJC-9550 an ideal choice for manufacturers and businesses looking to provide a unique solution to their customers.

Applications

The JJC-9550 Insulation Piercing Clamp is widely used across various industries and applications due to its versatility, safety, and reliability. Some common applications include:

• Power Distribution Systems: The clamp is ideal for power distribution networks where maintaining secure and reliable connections is essential for efficient energy flow. It ensures minimal energy loss and stable power transmission across the system.

• Industrial Machinery and Control Panels: The JJC-9550 is used in industrial systems where electrical connections must withstand heavy loads and demanding environments. It offers easy installation without the need to strip insulation, ensuring the connection remains safe and reliable.

• Residential and Commercial Wiring: This insulation piercing clamp is widely used in both residential and commercial electrical systems for making secure connections in outlets, switches, and circuit breakers. Its ease of use and reliable performance make it a go-to solution for electricians and installers.

• Telecommunications: The JJC-9550 is also used in telecommunications systems to ensure secure electrical connections for power and data transmission lines. Its ability to handle different wire sizes makes it a flexible solution for various telecom applications.

• Automotive and Marine Systems: The JJC-9550 is perfect for automotive and marine applications due to its durability, temperature tolerance, and secure connections. It ensures the system remains operational even in vibration-prone environments and fluctuating temperatures.

Why Choose the JJC-9550 Insulation Piercing Clamp?

The JJC-9550 Insulation Piercing Clamp combines superior electrical conductivity, safety, and versatility, making it an excellent choice for a wide range of electrical applications. Its copper construction ensures high electrical efficiency and long-lasting performance, while the fire-retardant plastic material provides enhanced safety, reducing the risk of fire hazards. Its compatibility with a wide range of wire gauges, along with its ability to perform across a broad temperature range, ensures that it can be used in a variety of demanding environments. Additionally, the option for OEM/ODM customization provides flexibility for businesses that require tailored solutions.

Benefits:

• High Electrical Conductivity: Copper metal construction ensures minimal resistance and maximum power transfer.

• Enhanced Safety: Fire-retardant plastic material reduces the risk of fire, improving the safety of electrical systems.

• Versatile Wire Compatibility: The JJC-9550 accommodates wire sizes from 16mm² to 95mm², offering flexibility for different installations.

• Wide Temperature Range: It performs reliably in temperatures ranging from -25°C to +85°C, making it suitable for various environments.

• Customization Options: OEM/ODM services allow businesses to create customized solutions to meet specific requirements.

Conclusion

The JJC-9550 Insulation Piercing Clamp is a highly reliable and efficient solution for securing electrical connections in a variety of systems. Whether used in power distribution, industrial machinery, residential wiring, or telecommunications, this clamp offers high electrical performance, safety, and versatility. With its copper construction, fire-retardant plastic insulation, and wide compatibility with different wire gauges, the JJC-9550 provides a safe and efficient connection for both low- and high-voltage applications. Its OEM/ODM services also make it a customizable solution for businesses seeking tailored electrical components. Choose the JJC-9550 for all your insulation piercing needs to ensure safe, long-lasting, and efficient electrical connections.

All advantages of the IPC can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please Contact Us freely for your best quote now!
