MS3A-Z2A Microwave Switch

    • Rating: 16A 250VAC/20A 125VAC
    • Circuit: SPDT
    • Actuator Forms: Short lever
    • Terminal Type: Quick-Connect
    • Terminal Size: 6.35mm
    • Operating Temperature: -25℃~+85℃
    • Operating Force: 2N
    • IP Class: IP40
    • Electrical Life: 10,000 Cycles
    • Mechanical Life: 100,000 Cycles
    • Contact Resistance: ≤30mΩ
    • Insulation Resistance: ≥100MΩ
    • Dielectric Strength: 1500VACmin
    • OEM or ODM: Available
CE CQC TUV ROHS SGS

MS3A-Z2A Microwave Switch: Reliable Performance for High-Demand Applications

The MS3A-Z2A Microwave Switch is designed to offer robust and dependable performance in various industrial and commercial settings. With its high electrical ratings, durable construction, and versatile features, this switch is well-suited for applications requiring consistent and reliable operation.

High Electrical Ratings for Versatile Applications:

The MS3A-Z2A Microwave Switch is rated for 16A at 250VAC and 20A at 125VAC, making it capable of handling substantial electrical loads. This high current rating ensures the switch can effectively manage power in demanding environments, providing reliable switching performance in high-power applications. Whether used in household appliances or industrial equipment, this switch meets the needs of diverse electrical systems.

Flexible Circuit Design:

Featuring a Single Pole Double Throw (SPDT) circuit configuration, the MS3A-Z2A offers versatile switching capabilities. The SPDT design allows the switch to alternate between two circuits, making it ideal for applications that require switching between different operational states. This flexibility enhances its applicability across various devices and systems.

Convenient Actuator Form:

The MS3A-Z2A comes with a short lever actuator, which provides a compact and user-friendly interface. The short lever design ensures easy operation while maintaining a streamlined profile, suitable for applications with limited space. This actuator type offers tactile feedback and precise control, essential for accurate switching.

Efficient Terminal Connections:

The switch is equipped with Quick-Connect terminals, facilitating quick and secure connections. With a terminal size of 6.35mm, it is compatible with standard connectors, allowing for straightforward installation. The Quick-Connect design simplifies the installation process, making it more efficient for manufacturers and end-users.

Wide Temperature Range for Versatility:

The MS3A-Z2A operates effectively within a temperature range of -25℃ to +85℃. This wide operating temperature range ensures the switch performs reliably in both cold and hot environments, making it suitable for a variety of settings, from outdoor installations to high-temperature industrial processes.

Durability and Longevity:

The MS3A-Z2A is designed for durability, featuring an electrical life of 10,000 cycles and a mechanical life of 100,000 cycles. These longevity specifications ensure the switch remains functional and reliable over extended periods of use. The high mechanical life rating indicates its ability to withstand repeated physical operation without failure, while the electrical life rating reflects its resilience in electrical switching tasks.

Low Contact Resistance:

The switch has a contact resistance of ≤30mΩ, ensuring efficient electrical conductivity and minimal energy loss. This low contact resistance enhances the switch’s performance by reducing heat generation and improving overall efficiency, crucial for applications requiring stable and reliable electrical connections.

Robust Insulation and Dielectric Strength:

With an insulation resistance of ≥100MΩ and a dielectric strength of 1500VAC minimum, the MS3A-Z2A provides excellent protection against electrical faults and high voltage transients. The high insulation resistance ensures effective isolation between circuits, while the dielectric strength indicates the switch’s ability to handle voltage stress without compromising its integrity.

OEM and ODM Availability:

The MS3A-Z2A Microwave Switch is available for both Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) services. This availability allows for customization to meet specific design requirements or integration into custom products, offering flexibility for various manufacturing and design needs.

In summary, the MS3A-Z2A Microwave Switch combines high electrical ratings, versatile circuit options, and durable construction to deliver a reliable switching solution for demanding applications. Its robust features and flexible design make it a valuable component for a wide range of industrial and commercial uses.

Microwave Switch MS3A-Z2A

MS3A-Z2A is Microwave Switch. This switch offering variety of functions including 16A current and different levers, widely using in household appliances. Besides, it uses 6.35mm terminals for quick and easy installation.

All advantages of the Micro Switch can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!

Contact Us

Related Products

MS10-Z0P Micro Switch Push Button

MS10-Z0P is Micro Switch Push Button. This switch offering variety of functions including 1A current and different levers, widely using in household appliances. Besides, it uses PCB terminals for quick and easy installation.

MS10-Z1P 12V Micro Switch

MS10-Z1P is 12V Micro Switch. This switch offering variety of functions including 1A current and different levers, widely using in household appliances. Besides, it uses PCB terminals for quick and easy installation.

MS10-Z2P Micro Switch Amazon

MS10-Z2P is Micro Switch Amazon. This switch offering variety of functions including 1A current and different levers, widely using in household appliances. Besides, it uses PCB terminals for quick and easy installation.

MS10-Z3P Mouse Micro Switch

MS10-Z3P is Mouse Micro Switch. This switch offering variety of functions including 1A current and different levers, widely using in household appliances. Besides, it uses PCB terminals for quick and easy installation.

MS10-Z4P Mini Micro Switch

MS10-Z4P is Mini Micro Switch. This switch offering variety of functions including 1A current and different levers, widely using in household appliances. Besides, it uses PCB terminals for quick and easy installation.

MS10-Z7P Spdt Kw10 Limit Micro Switch

MS10-Z7P is Spdt Kw10 Limit Micro Switch. This switch offering variety of functions including 1A current and different levers, widely using in household appliances. Besides, it uses PCB terminals for quick and easy installation.

MS3A-Z1A Micro Switch

MS3A-Z1A is Micro Switch. This switch offering variety of functions including 16A current and different levers, widely using in household appliances. Besides, it uses 6.35mm terminals for quick and easy installation.

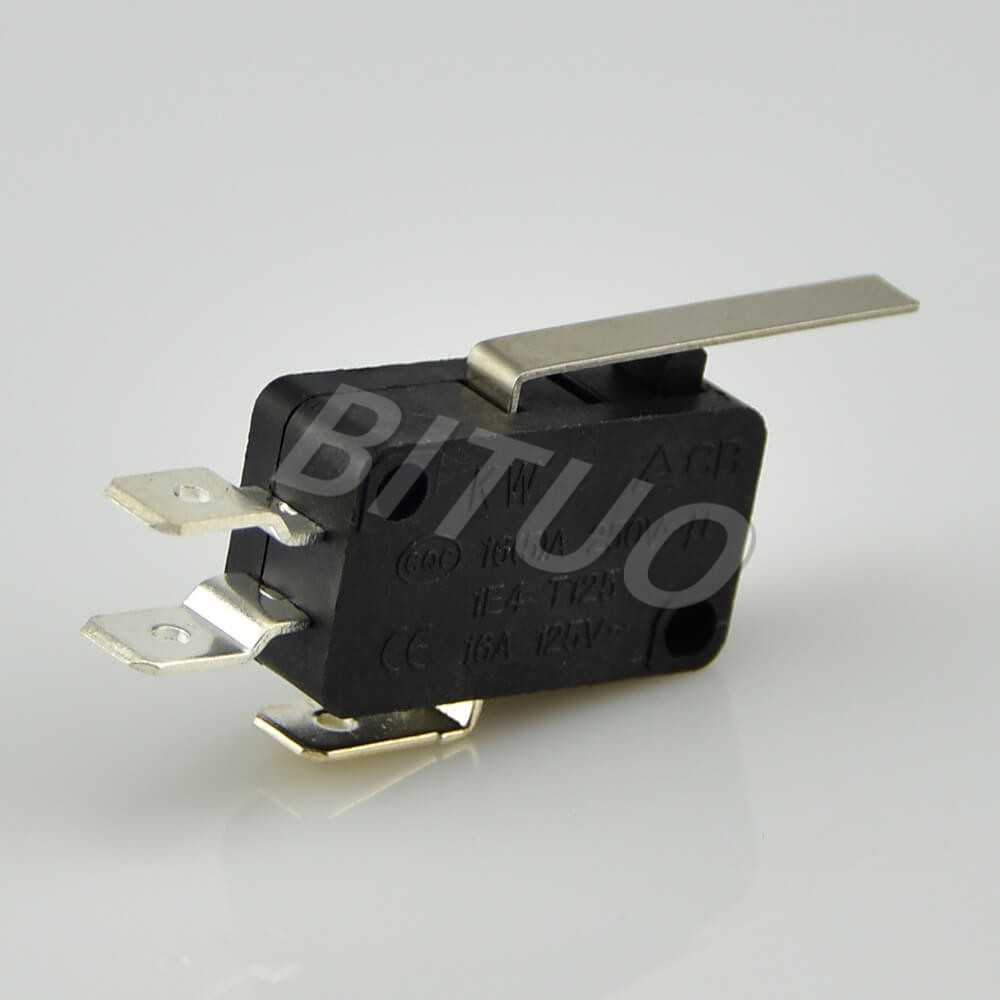

MS3A-Z3A Micro Switches Types
