BTA16H-10M Momentary Spst Switch

    • Voltage: 1.5V-250V AC/DC
    • Current: 3mA~5A
    • LED Voltage: /
    • LED Current: /
    • LED Color: /
    • Switch Function: Momentary
    • Operating Temperature: -30℃~+80℃
    • Operating Force: Appr. 2.5~3N
    • Connection Mode: 1NO
    • Installation Mode: Solder
    • Panel Mount Size: 16mm
    • IP Class: IP67
    • Protection Class: IK10
    • LED Life: /
    • Electrical Life: 50.000 Cycles
    • Mechanical Life: 250,000 Cycles
    • Contact Resistance: ≤50mΩ
    • Insulation Resistance: ≥1000mΩ
    • Dielectric Strength: 1900VACmin
    • OEM or ODM: Available

BITUO ELECTRIC Offers a broad line of sealed illuminated anti-vandal switches. We announce that the BTA series anti-vandal switch which is our most popular product will be your best partner no matter in your life or work.

The Momentary Spst Switch are RoHs certified, offering a rating of 3A 250VAC, ranging in size from 8mm up to 40mm, panel cutout size and SPDT or DPDT function. our styles offer ring and dot illumination, the international standby symbol or non-illuminated options. With high-tech materials, measurement and control technology, the switch has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching), which is very popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.

Mushroom actuators along with raised or flat actuators give the design engineer a multitude of options. IP67 sealing is available along with a choice of body and actuator colors including stainless steel, nickel and anodized aluminum in black, red, yellow, green or blue. Bi-color, Tri-color LED options make endless the combination for any design need.

At the meantime, for the switch body enclosure, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel. Contact BITUO for Momentary Spst Switch today!


The BTA16H-10M is a momentary SPST (Single Pole, Single Throw) switch with the following specifications:

  • Voltage: Designed to operate in the voltage range of 1.5V to 250V AC/DC, making it suitable for various electrical applications.
  • Current: Capable of handling a current in the range of 3mA to 5A, accommodating a wide range of electrical loads.
  • Switch Function: The switch operates in a momentary function, meaning it returns to its original state when the actuator is released. SPST indicates a single set of contacts that are open in the normal state and closed when the switch is activated.
  • Operating Temperature: Suitable for operation within a temperature range of -30℃ to +80℃, making it adaptable to various environmental conditions.
  • Operating Force: Requires an operating force of approximately 2.5~3N, providing tactile feedback to the user during operation.
  • Connection Mode: Features 1 Normally Open (1NO) contact configuration, providing a single open circuit when activated.
  • Installation Mode: Designed for solder installation, ensuring a secure and reliable connection to the panel or surface.
  • Panel Mount Size: With a panel mount size of 16mm, it is suitable for applications with limited space or where a compact design is essential.
  • IP Class: Possesses an IP67 rating, indicating a high level of protection against dust and water ingress. This makes it suitable for outdoor or harsh environments.
  • Protection Class: Has an IK10 rating, indicating a high level of protection against mechanical impacts.
  • LED Life: LED life information is not provided, suggesting that this model may not include LED illumination.
  • Electrical Life: The switch has an electrical life of 50,000 cycles, indicating its durability and suitability for repetitive switching operations.
  • Mechanical Life: Features a mechanical life of 250,000 cycles, ensuring long-lasting performance.
  • Contact Resistance: The contact resistance is specified as less than or equal to 50mΩ, ensuring efficient electrical connectivity.
  • Insulation Resistance: The insulation resistance is specified as greater than or equal to 1000mΩ, supporting proper isolation in electrical circuits.
  • Dielectric Strength: The switch can withstand a minimum of 1900VAC, indicating a high level of electrical strength.
  • OEM or ODM: The switch is available for Original Equipment Manufacturer (OEM) or Original Design Manufacturer (ODM) services, providing customization options for specific requirements.

The BTA16H-10M is suitable for applications where a momentary SPST switch with reliable performance and durability is required, such as control panels, industrial equipment, or other electronic devices. The solder installation makes it suitable for applications where a permanent and robust attachment is necessary.

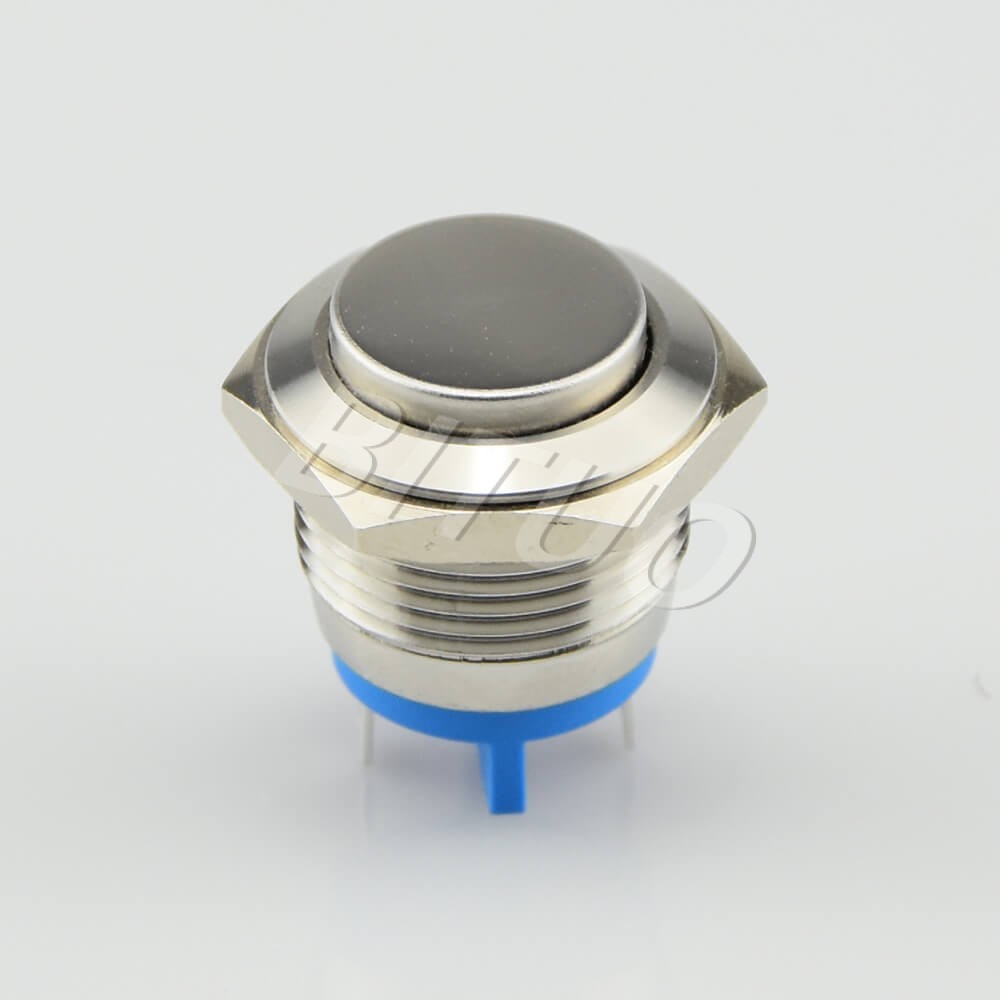

Momentary Spst Switch BTA16H-10M

BTA16H-10M is Momentary Spst Switch. This button without LED but uses a high button that offering a rating of 1.5V-250V AC/DC. Besides, it uses solder terminals for quick and easy installation.

All advantages of the anti-vandal switch can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!
