BTA19F-22E DPDT Push Button Switch

    • Voltage: 1.5V-250V AC/DC
    • Current: 3mA~5A
    • LED Voltage: 3V~220VAC/DC
    • LED Current: 3mA~20mA
    • LED Color: Red, Yellow, Blue, Green, White
    • Switch Function: Latching or Momentary
    • Operating Temperature: -30℃~+80℃
    • Operating Force: Appr. 2.5~3N
    • Connection Mode: 2NO2NC
    • Installation Mode: Solder
    • Panel Mount Size: 19mm
    • IP Class: IP67
    • Protection Class: IK10
    • LED Life: 40,000 hours
    • Electrical Life: 50.000 Cycles
    • Mechanical Life: 250,000 Cycles
    • Contact Resistance: ≤50mΩ
    • Insulation Resistance: ≥1000mΩ
    • Dielectric Strength: 1900VACmin
    • OEM or ODM: Available
CE CQC TUV ROHS SGS

BITUO ELECTRIC Offers a broad line of sealed illuminated anti-vandal switches. We announce that the BTA series anti-vandal switch which is our most popular product will be your best partner no matter in your life or work.

The DPDT Push Button Switch are RoHs certified, offering a rating of 3A 250VAC, ranging in size from 8mm up to 40mm, panel cutout size and SPDT or DPDT function. our styles offer ring and dot illumination, the international standby symbol or non-illuminated options. With high-tech materials, measurement and control technology, the switch has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching), which is very popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.

Mushroom actuators along with raised or flat actuators give the design engineer a multitude of options. IP67 sealing is available along with a choice of body and actuator colors including stainless steel, nickel and anodized aluminum in black, red, yellow, green or blue. Bi-color, Tri-color LED options make endless the combination for any design need.

At the meantime, for the switch body enclosure, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel. Contact BITUO for DPDT Push Button Switch today!



BTA19F-22E DPDT Push Button Switch:

1. Voltage Range:

  • Versatility: The switch is designed to operate within a broad voltage range, accommodating both low and high voltage applications.
  • Compatibility: Suitable for use with both AC and DC power sources.

2. Current Range:

  • Adaptability: The switch supports a wide range of operating currents, making it suitable for various electronic devices and applications.

3. LED Illumination:

  • Versatile LED Options: The switch offers a range of LED voltage options, from 3V to 220VAC/DC, providing flexibility for different lighting requirements.
  • Color Choices: Users can choose from an array of LED colors, including Red, Yellow, Blue, Green, or White.
  • Longevity: With a LED life of 40,000 hours, the switch ensures a prolonged and reliable illumination source.

4. Switch Functionality:

  • Operational Flexibility: Users can select between Latching and Momentary switch functions, catering to diverse operational needs.

5. Operating Conditions:

  • Temperature Range: Designed to withstand a wide operating temperature range from -30℃ to +80℃.
  • Force Requirement: The switch operates with an approximate force of 2.5~3N, ensuring ease of use.

6. Connection and Installation:

  • Contact Configuration: Features 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, providing flexibility in circuit design.
  • Secure Installation: Solder installation mode ensures a reliable and secure connection.

7. Panel Mount Size:

  • Compact Design: With a 19mm panel mount size, the switch is suitable for applications with limited space.

8. Environmental Protection:

  • IP67 Rating: Dust-tight and capable of withstanding immersion up to 1 meter, making it suitable for use in harsh environments.
  • IK10 Protection Class: Resistant to impact energy up to 5 joules, ensuring durability and longevity.

9. Lifespan:

  • Electrical Life: Withstands up to 50,000 cycles, indicating robust electrical performance.
  • Mechanical Life: Endures 250,000 cycles, ensuring durability and reliability in mechanical operations.

10. Electrical Properties:

  • Low Contact Resistance: Contact resistance is kept below ≤50mΩ for efficient electrical conductivity.
  • High Insulation Resistance: Insulation resistance is maintained at ≥1000mΩ, ensuring electrical integrity.
  • Dielectric Strength: Withstands 1900VACmin, indicating strong insulation properties.

11. Customization Options:

  • OEM or ODM Availability: The switch is available for Original Equipment Manufacturer (OEM) or Original Design Manufacturer (ODM) purposes, allowing for customization to specific design requirements.

In summary, the BTA19F-22E DPDT Push Button Switch offers a comprehensive set of features, combining adaptability, durability, and customization options for a wide range of electronic applications.



DPDT Push Button Switch BTA19F-22EL BTA19F-22EM

BTA19F-22E is DPDT Push Button Switch. These buttons uses ring led and flat button that offering a rating of 1.5V-250V AC/DC. Latching or momentary are available for this switch. They are double poles function. Besides, it uses solder terminals for quick and easy installation. And the LED color can be red, yellow, blue, green, white and so on.

All advantages of the anti-vandal switch can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!



Contact Us

Related Products

BTAHC19F-10 APT LA39 Push Button

BTAHC19F-10 is APT LA39 Push Button. These buttons without LED but uses a flat button that offering a rating of 10A 250VAC. Latching or momentary are available for this switch. Besides, it uses solder terminals for quick and easy installation.

BTAHC19F-10EP Power Push Button Switch

BTAHC19F-10EP is Power Push Button Switch. These buttons uses power symbol and flat button that offering a rating of 10A 250VAC. Latching or momentary are available for this switch. Besides, it uses solder terminals for quick and easy installation. And the LED color can be red, yellow, blue, green, white and so on.

BTA19B-10MS Anti Vandal Momentary Switch

BTA19B-10MS is Anti Vandal Momentary Switch. This button without LED but uses a ball button that offering a rating of 1.5V-250V AC/DC. Latching or momentary are available for this switch. Besides, it uses screw terminals for quick and easy installation.

BTA19F-10MS Button Switch

BTA19F-10MS is Button Switch. This button without LED but uses a flat button that offering a rating of 1.5V-250V AC/DC. Besides, it uses screw terminals for quick and easy installation.

BTA19H-10MS Button Electric

BTA19H-10MS is Button Electric. This button without LED but uses a high button that offering a rating of 1.5V-250V AC/DC. Besides, it uses screw terminals for quick and easy installation.

BTA19F-10EM Push Button Light Switch UK

BTA19F-10EM is Push Button Light Switch UK. These buttons uses ring led and flat button that offering a rating of 1.5V-250V AC/DC. Besides, it uses solder terminals for quick and easy installation. And the LED color can be red, yellow, blue, green, white and so on.

BTA19F-10EMS LED Light Push Button

BTA19F-10EMS is LED Light Push Button. These buttons uses ring led and flat button that offering a rating of 1.5V-250V AC/DC. Besides, it uses screw terminals for quick and easy installation. And the LED color can be red, yellow, blue, green, white and so on.

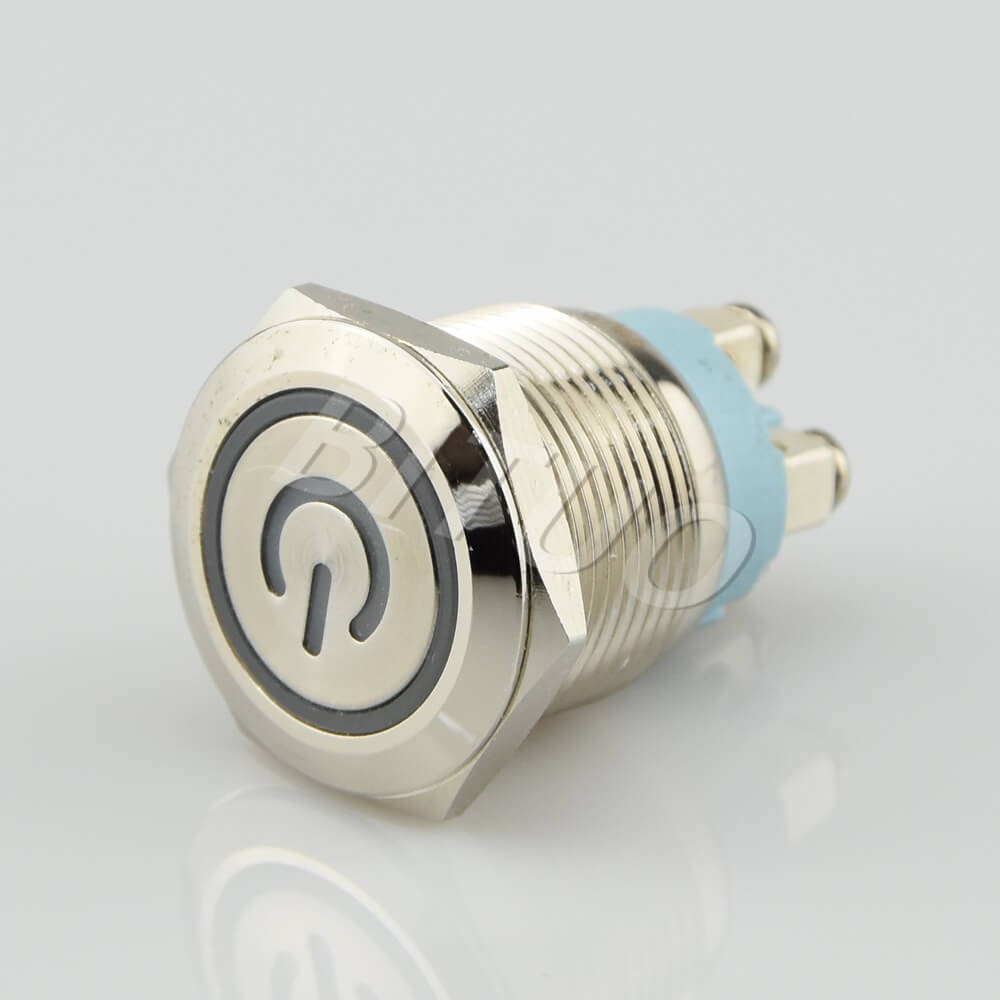

BTA19F-10EPMS 19mm LED Waterproof Switch
