SK-22D02

SK-22D02 Switch: High-Performance 2P2T PCB Slide Switch

The SK-22D02 is a robust 2P2T (2 Pole 2 Throw) slide switch engineered for reliable and efficient operation in various electronic and industrial applications. With a current rating of 0.5A at 50VDC, this switch is designed to provide dependable control in low-current circuits. Its versatile design and durable construction make it a suitable choice for numerous circuit management needs.

Reliable 2P2T Switching Function

The SK-22D02 features a 2 Pole 2 Throw (2P2T) switching function, allowing it to control two separate circuits with precision. This configuration provides clear and reliable switching between two different positions, making it ideal for applications that require versatile circuit management. The switch’s 2P2T function ensures effective operation, enhancing the performance of electronic systems that depend on precise switching.

Wide Operating Temperature Range

The SK-22D02 is built to perform reliably across a broad temperature range, from -30℃ to +80℃. This wide operating temperature range ensures that the switch maintains consistent functionality in both extremely cold and high-temperature environments. Whether used in indoor electronics, industrial settings, or environments with fluctuating temperatures, the SK-22D02 delivers dependable performance in diverse conditions.

Durable and Long-Lasting Design

Constructed for durability, the SK-22D02 offers an impressive electrical life of 10,000 cycles. This long operational lifespan reduces the need for frequent replacements, making it a cost-effective choice for long-term use. The switch features a contact resistance of ≤30mΩ, which minimizes power loss and ensures efficient signal transmission. Additionally, its insulation resistance of ≥100MΩ provides strong protection against leakage currents, contributing to overall safety and performance.

High Safety and Performance Standards

The SK-22D02 meets stringent safety and performance standards with a dielectric strength of 500VAC minimum. This high dielectric strength ensures that the switch can handle significant voltage levels without risk of electrical breakdown, providing reliable operation in high-voltage applications. The switch’s robust design guarantees consistent performance even in demanding environments where electrical safety is critical.

PCB Installation and Customization Options

Designed for PCB (Printed Circuit Board) installation, the SK-22D02 ensures a stable and secure connection. This installation method is particularly advantageous for applications exposed to mechanical stress or vibration, as it keeps the switch firmly in place. Additionally, the SK-22D02 is available for OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) customization. This allows manufacturers to adjust the switch’s specifications to meet specific project requirements, making it a valuable component for custom electronic designs and specialized applications.

Conclusion

The SK-22D02 slide switch offers a high-performance solution for applications requiring reliable 2P2T switching with a low current rating. Its wide operating temperature range, durable construction, and high safety standards make it an excellent choice for a variety of electronic systems. The switch’s long electrical life, low contact resistance, and high dielectric strength enhance its suitability for demanding environments. Whether used in industrial control systems, consumer electronics, or custom-designed projects, the SK-22D02 delivers the precision, durability, and safety necessary for modern electronic applications. With OEM and ODM customization options available, the SK-22D02 ensures that manufacturers can adapt the switch to their specific requirements, providing a tailored solution for diverse electronic needs.

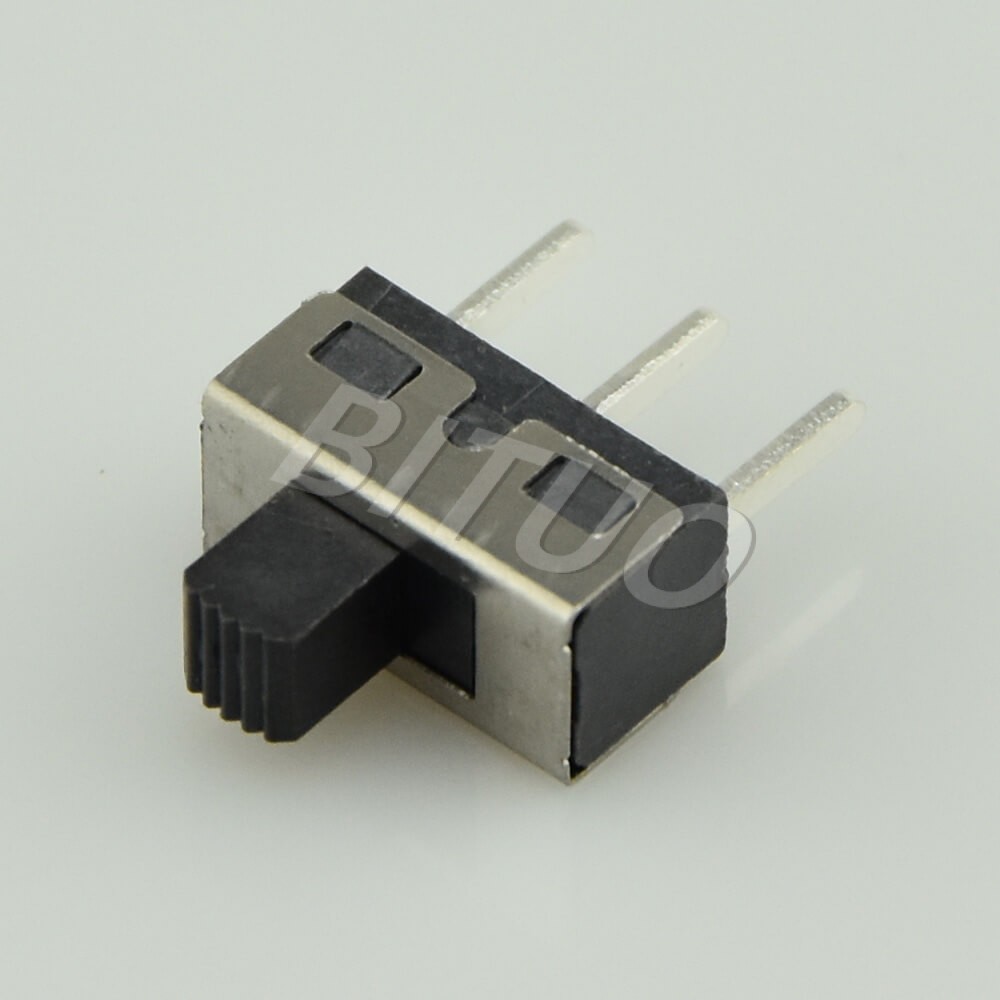

Miniature Slide SK-22D02

SK-22D02 is Miniature Slide. This switch offering a rating of 0.5A 50VDC. Bituo offering custom height of button as well. Besides, it uses PCB terminals for quick and easy installation.

All advantages of the slide switch can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!
