Slide switches are widely used in electronic devices because they offer a simple and reliable way to control circuits. Their straightforward operation, compact design, and durability make them suitable for everything from consumer gadgets to industrial systems. Even as technology advances, slide switches remain a dependable solution for manual control.

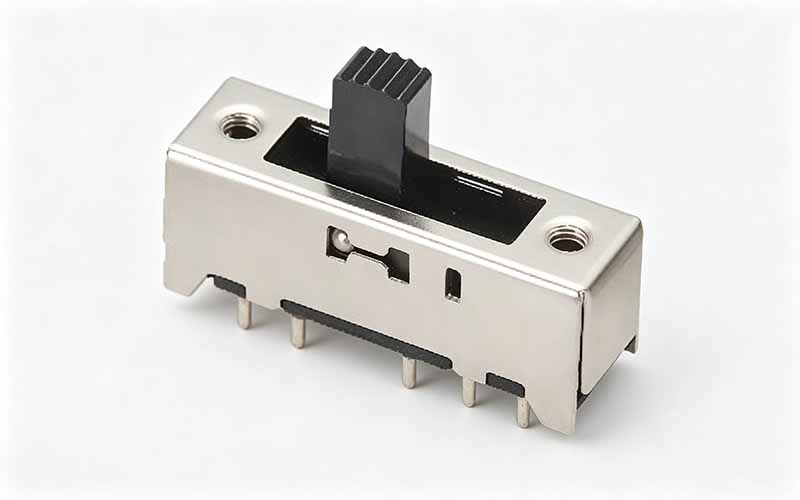

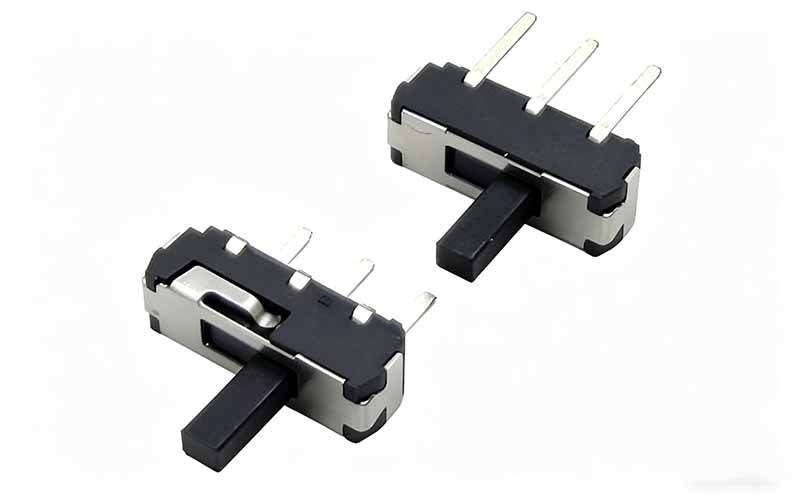

What Is a Slide Switch?
A slide switch is a mechanical switch that operates by moving a small actuator back and forth. This motion opens or closes an electrical circuit, allowing or stopping the flow of current. The position of the actuator determines the state of the switch, which can be on or off or in some cases multiple positions.
Slide switches are known for their clear physical feedback. Users can easily see and feel the switch position, which makes them suitable for applications where visual confirmation is important. Their simple design also contributes to long service life and consistent performance.
Why Slide Switches Are Still Widely Used?
In many applications, users need a direct and visible way to control power or select functions. Slide switches provide this with a clear physical position that shows the current state of the circuit. Unlike digital controls, they do not rely on software, which makes them stable and predictable.
Another reason for their continued use is their ease of integration. Designers can easily include slide switches in compact layouts, making them ideal for small electronic products. Their low cost and long service life also make them a practical choice for large scale production.

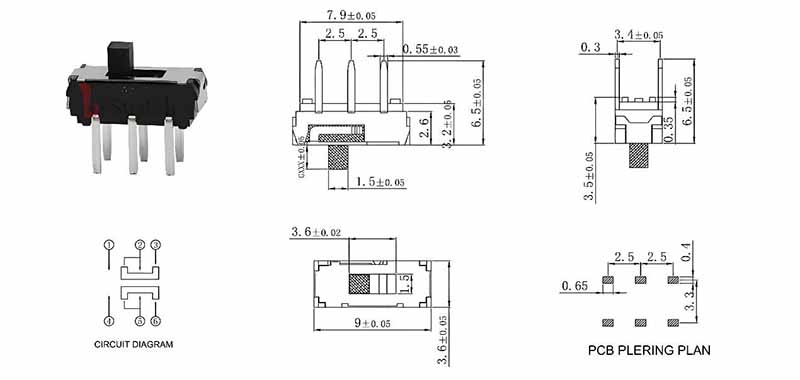

How Slide Switches Control Circuits?
Inside a slide switch, a small conductive contact moves along fixed terminals when the actuator is pushed. This movement either connects or disconnects the circuit. Because of this direct mechanical action, the response is immediate and consistent.
Some slide switches are designed with only two positions, while others allow multiple positions for selecting different functions. This flexibility allows them to be used in a wide range of control scenarios.
Common Types of Slide Switches
Slide switches are available in several types, each designed to meet different functional requirements.
| Type | Description | Typical Use Case |
| Single Pole Single Throw | Controls one circuit with two positions, turning it on or off | Basic power control in simple electronic devices |
| Single Pole Double Throw | Connects one input to one of two outputs | Switching between two modes or signal paths |
| Double Pole Double Throw | Controls two separate circuits at the same time | Applications requiring synchronized switching |
| Multi Position Slide Switch | Provides more than two positions for selecting different settings | Devices with multiple functions or operating modes |
Where Slide Switches Are Commonly Used?
Slide switches are widely used across different industries because of their simple operation, compact design, and reliable performance. Their ability to provide clear manual control makes them suitable for both everyday devices and professional equipment.
Consumer Electronics
In consumer electronics, slide switches are commonly used in products such as portable audio devices, toys, and small appliances. They provide an easy way to control power or switch between modes.
Because of their compact size, they are ideal for handheld devices where space is limited. Their clear on and off position also allows users to quickly understand the device status.

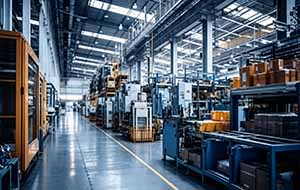

Industrial Equipment
In industrial environments, slide switches are often used in control panels and machinery. Operators rely on them for direct and dependable control during operation.
Their durable construction allows them to withstand frequent use, making them suitable for equipment that runs continuously or requires repeated manual input.

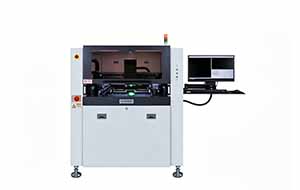

Communication and Testing Devices
In communication and testing equipment, slide switches are used to select channels, adjust settings, or configure system functions.
Their clear physical positioning helps reduce user errors, especially in situations where quick adjustments are needed. This makes them a reliable choice for systems that require precise control.
BituoElec Slide Switch Product Solutions
BituoElec offers a wide range of slide switch products designed to meet different application needs. These switches are built with reliable materials and designed for stable performance across various environments.

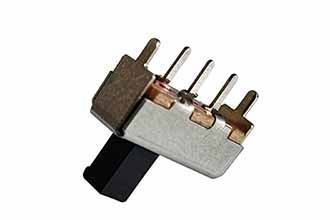

Standard Miniature Slide Switches: These switches are compact and widely used in consumer electronics. They are ideal for applications where space is limited but reliable control is still required. Their simple structure allows for easy installation and consistent operation.

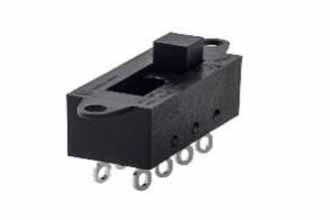

Multi Position Slide Switches: Multi position slide switches provide more than two settings, allowing users to select between different modes or functions. These are commonly used in devices that require flexible configuration, such as communication equipment or testing systems.

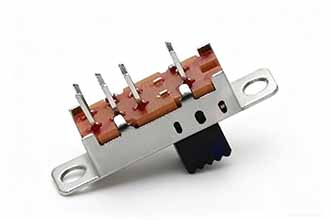

Through Hole Slide Switches: Through hole slide switches are designed for strong mechanical stability. They are suitable for applications where durability is important, such as industrial equipment or control systems. Their secure mounting ensures long term reliability.

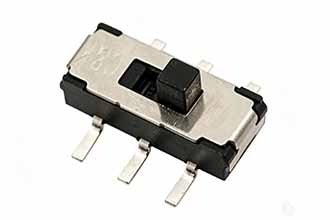

Surface Mount Slide Switches: Surface mount slide switches are designed for modern circuit boards that require compact layouts and automated assembly. These switches help reduce space usage while maintaining stable electrical performance.

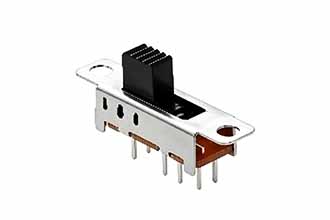

High Durability Slide Switches: For demanding environments, BituoElec also provides slide switches with enhanced durability. These switches are designed to withstand frequent operation and challenging conditions, making them suitable for industrial and heavy use applications.
BITUO ELECTRIC Offerings

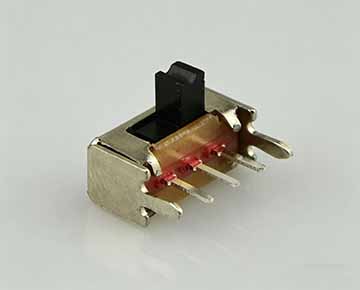

SK Series Slide Switch
The SK Series offers a versatile range of slide switches designed for reliable circuit control in various applications. With options for single pole and double pole configurations, this series supports both simple and more complex switching needs.

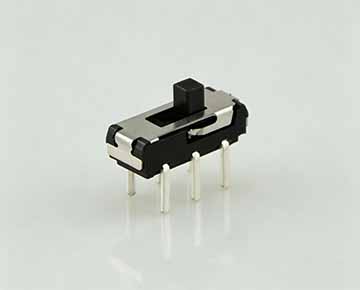

MS Series Slide Switch
The MS Series features compact slide switches designed for environments that require protection against dust and moisture. With sealed construction and multiple position options, this series provides dependable performance in more demanding conditions.

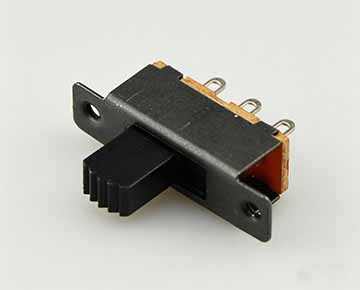

SS Series Slide Switch
The SS Series includes miniature slide switches designed for space saving applications. Their compact structure allows easy integration into small electronic devices while maintaining stable switching performance.
How to Choose the Right Slide Switch for Different Applications?
Selecting the right slide switch requires more than just matching a basic function. A well chosen switch can improve system reliability, user experience, and overall product performance. To make the right decision, it is important to evaluate several practical factors based on your specific application.
Electrical Performance Requirements
Start by reviewing the electrical specifications of your system. The slide switch must be able to handle the required voltage and current without overheating or degrading over time. Choosing a switch with appropriate electrical capacity helps ensure stable operation and prevents premature failure. For applications with frequent switching, it is also important to consider contact durability and resistance stability.
Switching Function and Number of Positions
Different applications require different switching functions. For basic power control, a two position switch is usually sufficient. However, more complex devices may require multiple positions to support different operating modes or signal paths. Understanding how many states your device needs will help you select the correct configuration and avoid limitations during use.
Size and Mounting Compatibility
The physical size of the switch should match the available space in your device. Compact switches are ideal for portable electronics and space limited designs, while larger switches may provide better usability in industrial environments. In addition, consider the mounting method, such as through board mounting or surface mounting, to ensure compatibility with your production process and circuit layout.
Operating Environment and Durability
Environmental conditions play a major role in switch selection. In environments with dust, moisture, or temperature variation, choosing a switch designed for durability can improve long term performance. Materials, sealing structure, and mechanical strength should all be considered when selecting a switch for demanding conditions.
User Interaction and Operation Feel
The way users interact with the switch is also important. A smooth sliding action with clear positioning improves usability and reduces operation errors. For applications that require frequent use, selecting a switch with stable mechanical feedback can enhance the overall experience and reduce wear over time.
Conclusion
Slide switches are an important component of electromechanical engineering, providing a simple and direct method for circuit control in various applications. Due to their reliability, ease of use, and adaptability, slide switches remain a fundamental component of many devices.
BituoElec offers a comprehensive line of slide switches to meet diverse design requirements and operating conditions. By selecting the appropriate switch and applying it correctly, users can achieve stable performance and efficient control in their systems.
