Push button switch

  • Stable Electrical Performance
  • Excellent Waterproof Performance
  • Reliable Mechanical Performance

Get Free Estimate

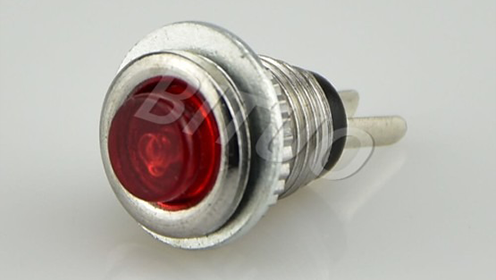

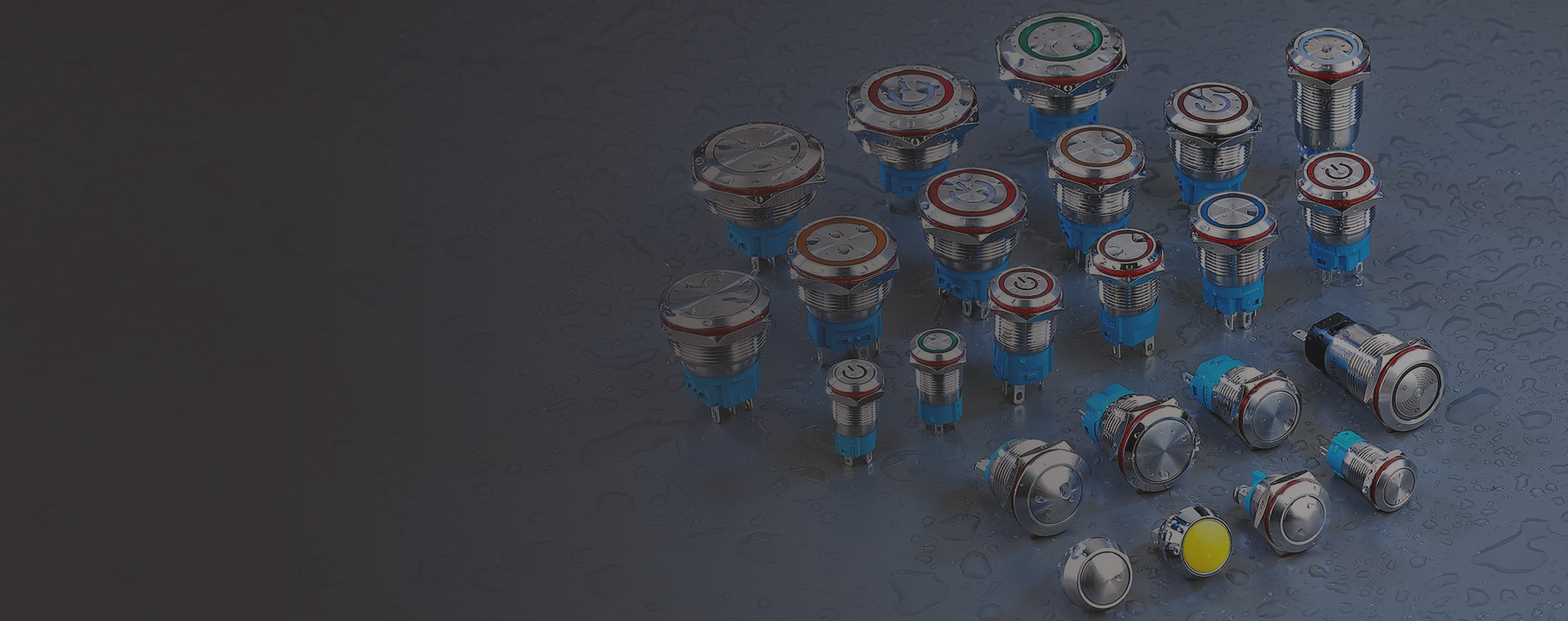

    Waterproof Push Button Switch

    Let The Electricity Do It All Can Do

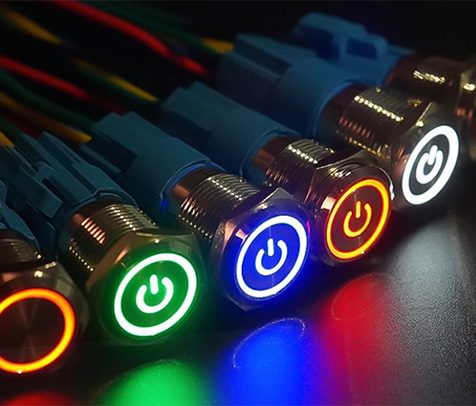

    BITUO ELECTRIC Offers a broad line of sealed illuminated waterproof push button switches. With more than 250,000 cycles of mechanical Life, IP67 waterproof performance, high-precision CNC processing technology, in line with the industry’s high standard assembly process, our products are favored by trillions of users all over the world.

    Our Features

    One-Stop Shopping

    One-Stop Shopping

    Full range of push button switches

    Fast Shipping

    Fast Shipping

    Mainstream products 48 hours after the payment

    After-Sale Service

    After-Sale Service

    24 hours caring customer service online

    Our Service

    Waterproof Push Button Guide customization

    Customization

    Accept various symbols and colors customized

    Waterproof Push Button Guide retail

    Retail

    Accept retail, to provide you with the most affordable courier service

    Waterproof Push Button Guide wholesale

    Wholesale

    Accept wholesale, to provide you with the fastest sea or air services

    Waterproof Push Button Guide

    There are many structural types of waterproof push button switches, mainly mushroom head type, self-locking type, self-resetting type, indicator light type, key type, etc.

    The composition of waterproof push button switches? Metal buttons are mainly composed of button caps, return springs, contacts and shells.

    What are the characteristics of waterproof push button switches? The metal button switch has the characteristics of corrosion resistance, excellent waterproof performance, simple operation, convenient installation, beautiful appearance and pressure resistance.

    Waterproof push button switches arewidely used in electric power, water conservancy, metallurgy, coal mine, water conservancy, light industry, chemical industry and other fields.

    Waterproof Push Button Guide
    Waterproof Push Button Guide
    • Size:8mm 10mm 12mm 16mm 19mm 22mm 25mm 30mm 35mm 40mm
    • Color: Red, Green, Blue, Yellow, Orange, White,Dual color and etc.
    • Switch Function: Latching or Momentary
    • Operating Temperature: -30℃~+80℃
    • Operating Force: Appr. 2.5~3N
    • Connection Mode: 1NO1NC, 2NO2NC
    • Installation Mode: Solder or Screw
    • IP Class: IP67, LED Life: 40,000 hours
    • Protection Class: IK10
    • Electrical Life: 50.000 Cycles
    • Mechanical Life: 250,000 Cycles
    • Contact Resistance: ≤50mΩ
    • Insulation Resistance: ≥1000mΩ
    • Dielectric Strength: 1900VACmin
    • OEM or ODM: Available
