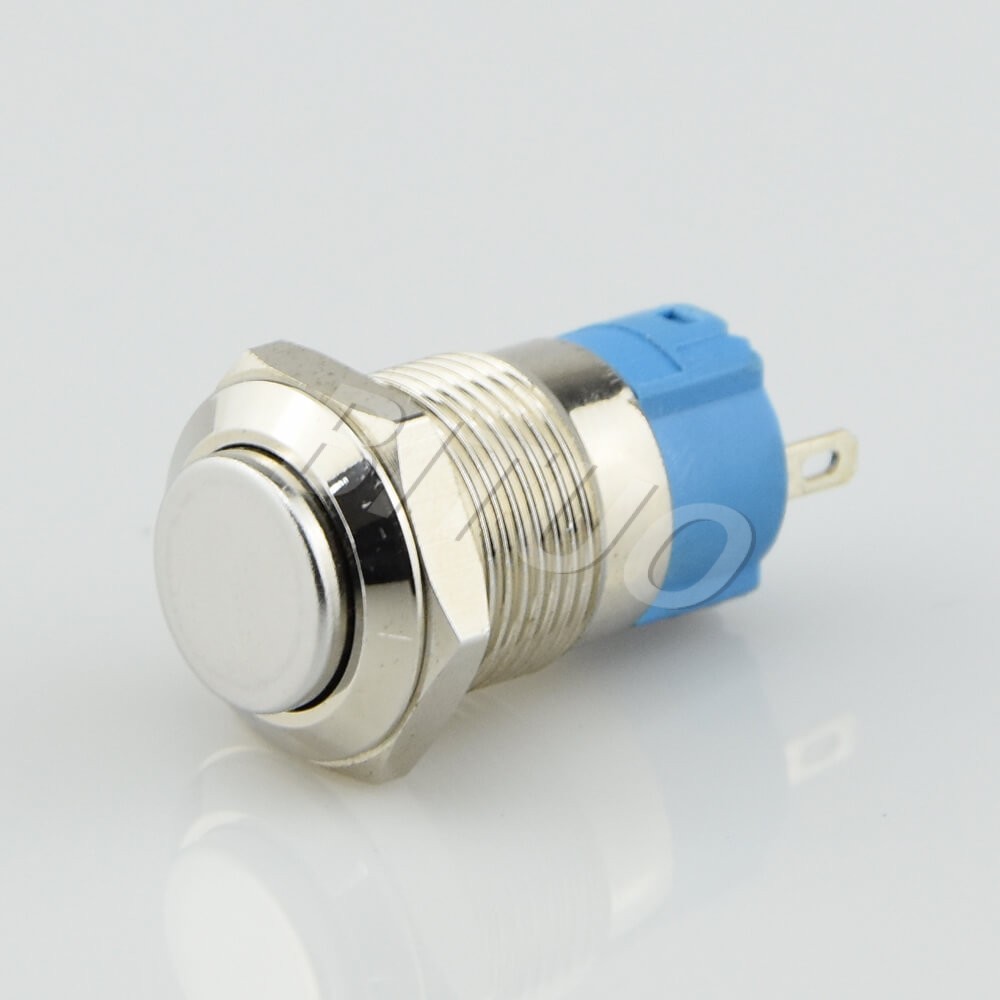

BTA12F-10 Waterproof Button

    • Voltage: 1.5V-250V AC/DC
    • Current: 3mA~5A
    • LED Voltage: /
    • LED Current: /
    • LED Color: /
    • Switch Function: Latching or Momentary
    • Operating Temperature: -30℃~+80℃
    • Operating Force: Appr. 2.5~3N
    • Connection Mode: 1NO
    • Installation Mode: Solder
    • Panel Mount Size: 12mm
    • IP Class: IP67
    • Protection Class: IK10
    • LED Life: /
    • Electrical Life: 50.000 Cycles
    • Mechanical Life: 250,000 Cycles
    • Contact Resistance: ≤50mΩ
    • Insulation Resistance: ≥1000mΩ
    • Dielectric Strength: 1900VACmin
    • OEM or ODM: Available

BITUO ELECTRIC Offers a broad line of sealed illuminated anti-vandal switches. We announce that the BTA series anti-vandal switch which is our most popular product will be your best partner no matter in your life or work.

The Waterproof Button are RoHs certified, offering a rating of 3A 250VAC, ranging in size from 8mm up to 40mm, panel cutout size and SPDT or DPDT function. our styles offer ring and dot illumination, the international standby symbol or non-illuminated options. With high-tech materials, measurement and control technology, the switch has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching), which is very popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.

Mushroom actuators along with raised or flat actuators give the design engineer a multitude of options. IP67 sealing is available along with a choice of body and actuator colors including stainless steel, nickel and anodized aluminum in black, red, yellow, green or blue. Bi-color, Tri-color LED options make endless the combination for any design need.

At the meantime, for the switch body enclosure, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel. Contact BITUO for Waterproof Button today!


The BTA12F-10 Waterproof Button from BITUO ELECTRIC is designed with specifications that make it suitable for various applications. Here are the key features of this waterproof button:

  • Voltage: The button operates within a voltage range of 1.5V to 250V AC/DC, providing versatility for different electrical systems.
  • Current: The current rating ranges from 3mA to 5A, accommodating a variety of electrical loads.
  • LED Specifications: The LED voltage, LED current, and LED color are not specified, indicating that this particular model might not include LED illumination.
  • Switch Function: The button can function in both latching and momentary modes, providing flexibility based on the application’s requirements.
  • Operating Temperature: The button can operate within a temperature range of -30℃ to +80℃, making it suitable for use in environments with varying temperatures.
  • Operating Force: The approximate operating force required is 2.5~3N, indicating the force needed to actuate the button.
  • Connection Mode: The button features 1 Normally Open (1NO) connection mode.
  • Installation Mode: The button is designed for solder installation.
  • Panel Mount Size: The panel mount size is 12mm, providing a compact form factor suitable for various panel applications.
  • IP Class: The button has an IP67 rating, indicating a high level of protection against dust and temporary immersion in water.
  • Protection Class: With an IK10 rating, the button demonstrates strong resistance to impact and external mechanical forces.
  • LED Life: The LED life is not specified.
  • Electrical Life: The button has an electrical life of 50,000 cycles, indicating the number of cycles it can reliably perform under electrical load.
  • Mechanical Life: The mechanical life is 250,000 cycles, indicating the durability of the button in terms of mechanical actuations.
  • Contact Resistance: The contact resistance is specified as less than or equal to 50mΩ, ensuring efficient electrical connectivity.
  • Insulation Resistance: The button has an insulation resistance of at least 1000mΩ, supporting proper isolation in electrical circuits.
  • Dielectric Strength: The button can withstand a minimum of 1900VAC, ensuring safe operation within electrical systems.
  • OEM or ODM: OEM (Original Equipment Manufacturer) or ODM (Original Design Manufacturer) options are available, providing customization possibilities.

The BTA12F-10 Waterproof Button is designed to provide reliable and durable performance in various environments, with a focus on protection against water and dust, flexibility in switch function, and customization options for specific applications.

Waterproof Button BTA12F-10L BTA12F-10M

BTA12F-10 is Waterproof Button. These buttons without LED but uses a flat button that offering a rating of 1.5V-250V AC/DC. Latching or momentary are available for this switch. Besides, it uses solder terminals for quick and easy installation.

All advantages of the anti-vandal switch can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!
