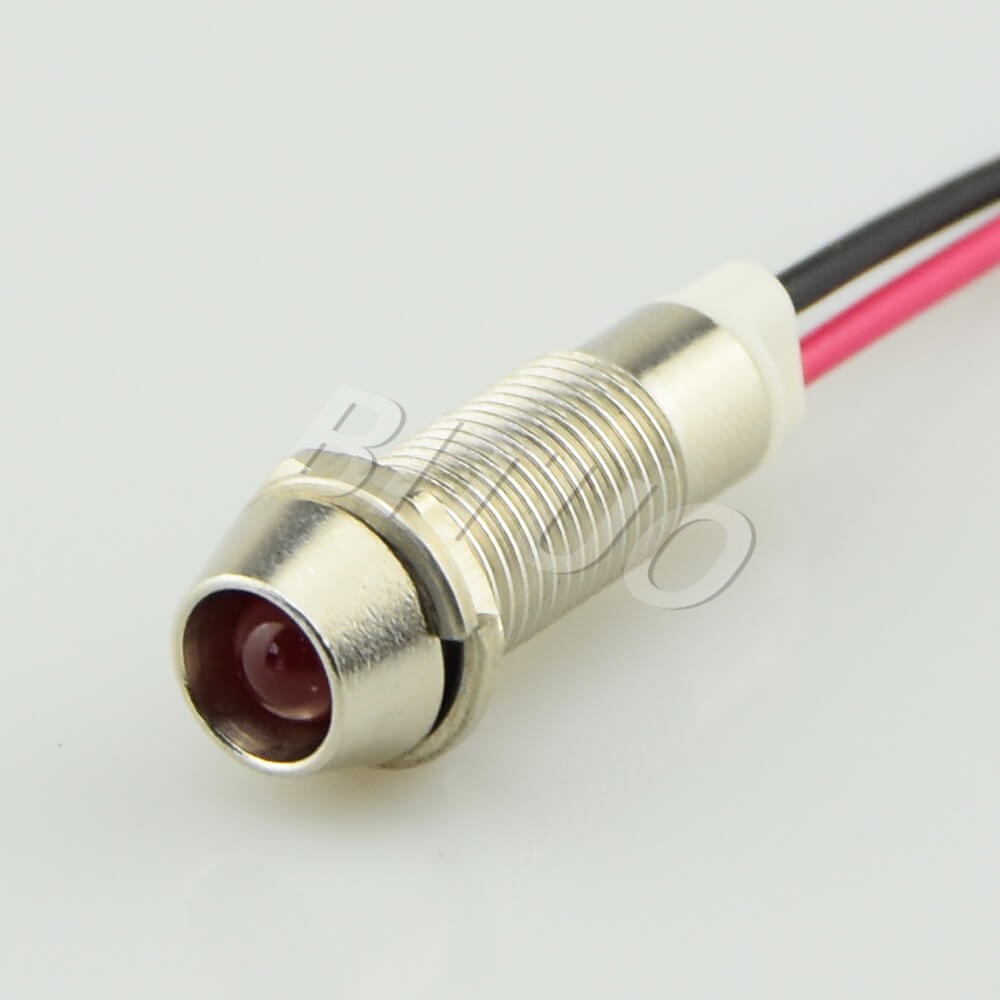

BTL22-6/8/10/12/14/16 120 volt Indicator Light

    • LED Voltage: 3V-220VAC/DC
    • LED Current: 3mA~20mA
    • LED Color: Red, Yellow, Blue, Green, White
    • LED Life: 40,000 Hours
    • Operating Temperature: -30℃~+80℃
    • Installation Mode: Solder Terminal
    • Panel Mount Size: 6/8/10/12/14/16mm
    • IP Class: IP40
    • Contact Resistance: ≤50mΩ
    • Insulation Resistance: ≥1000mΩ
    • Dielectric Strength: 1900VACmin
    • OEM or ODM: Available

BITUO has ten years of experience in production and sales of indicator lights. Our LED indicator lights are manufactured with a chrome housing and nylon base for a superior and depending performance with professional aesthetics. So our LED indicator lights have a 100,000 hours life expectancy and are used in a variety of DC applications.

BITUO’s 120 volt Indicator Light are RoHS certified. At present, BITUO has two kinds of metal and plastic indicator lights, and metal indicator light has two kinds of waterproof and non-waterproof type. We offer in range of 3mm, 5mm,6mm,10mm,12mm,16mm,20mm,22mm and etc. They are widely used in large-scale mechanical equipment and play an important role in circuit indication and control system. BITUO’s indicator light has a variety of color options, commonly used in red, green, yellow, blue, white and amber. In the same way, it matches all kinds of voltages, 3V, 6V, 12V, 24V, 36V, 48V, 110V, 220V, 380 and etc. which can greatly increase the options for customers and providing convenience for people’s life.

Our company is highly acclaimed in offering a wide range of Indicator Light. We offer this superior make Indicator Light as per the diverse needs of our client. Being economically priced, this Indicator Light is very popular in the industry.

As we always aimed, BITUO is committed to improving people’s lives, just like our slogan, brighten your future. Contact us for 120 volt Indicator Light soon!

120 volt Indicator Light BTL22-6/8/10/12/14/16

BTL22 series is 120 volt Indicator Light. This indicator light with solder terminal that offering a rating of 3V-220V AC/DC. And the LED color can be red, yellow, blue, green, white and so on.

All advantages of the indicator light can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!


The BTL22 series of 120-volt Indicator Lights from BITUO offer a range of versatile options to meet various application needs. Here are the key specifications and features:

LED Voltage: This indicator light series is rated for a voltage range of 3V to 220V AC/DC, providing flexibility for use with different power sources.

LED Current: The LED current is adjustable, ranging from 3mA to 20mA, allowing precise control over brightness and power consumption to meet specific requirements.

LED Color: The BTL22-6/8/10/12/14/16 Indicator Lights are available in various LED colors, including Red, Yellow, Blue, Green, and White, offering options to match specific signaling or indication needs.

LED Life: With an extended LED life of 40,000 hours, these indicator lights ensure long-lasting and reliable performance, reducing the need for frequent replacements and maintenance.

Operating Temperature: The indicator lights can effectively operate in a wide temperature range, withstanding conditions from -30°C to +80°C, ensuring suitability for both indoor and outdoor applications.

Installation Mode: The solder terminal installation mode ensures a secure and reliable attachment, allowing for easy integration into various circuits and equipment.

Panel Mount Size: The BTL22 series offers various panel mount sizes, including 6mm, 8mm, 10mm, 12mm, 14mm, and 16mm, catering to different space and design requirements.

IP Class: These indicator lights have an IP40 rating, indicating limited protection against dust. While they offer some protection, they are not suitable for wet or dusty environments.

Contact Resistance: The indicator lights offer low contact resistance, with a maximum of ≤50mΩ, ensuring efficient and reliable electrical connections.

Insulation Resistance: These lights provide good insulation resistance, with a minimum value of ≥1000mΩ, contributing to safe and consistent operation.

Dielectric Strength: With a dielectric strength of 1900VACmin, they provide an added layer of safety and protection against electrical issues.

OEM or ODM: The availability of OEM and ODM options allows for customization to meet specific requirements and branding needs, showcasing flexibility in meeting customer demands.

In summary, the BTL22 series of 120-volt Indicator Lights from BITUO offers a versatile range of options to suit various applications. Whether you require them for industrial, automotive, or general signaling purposes, these indicator lights are engineered to provide efficient, long-lasting, and customizable illumination to meet the needs of diverse environments and applications.
