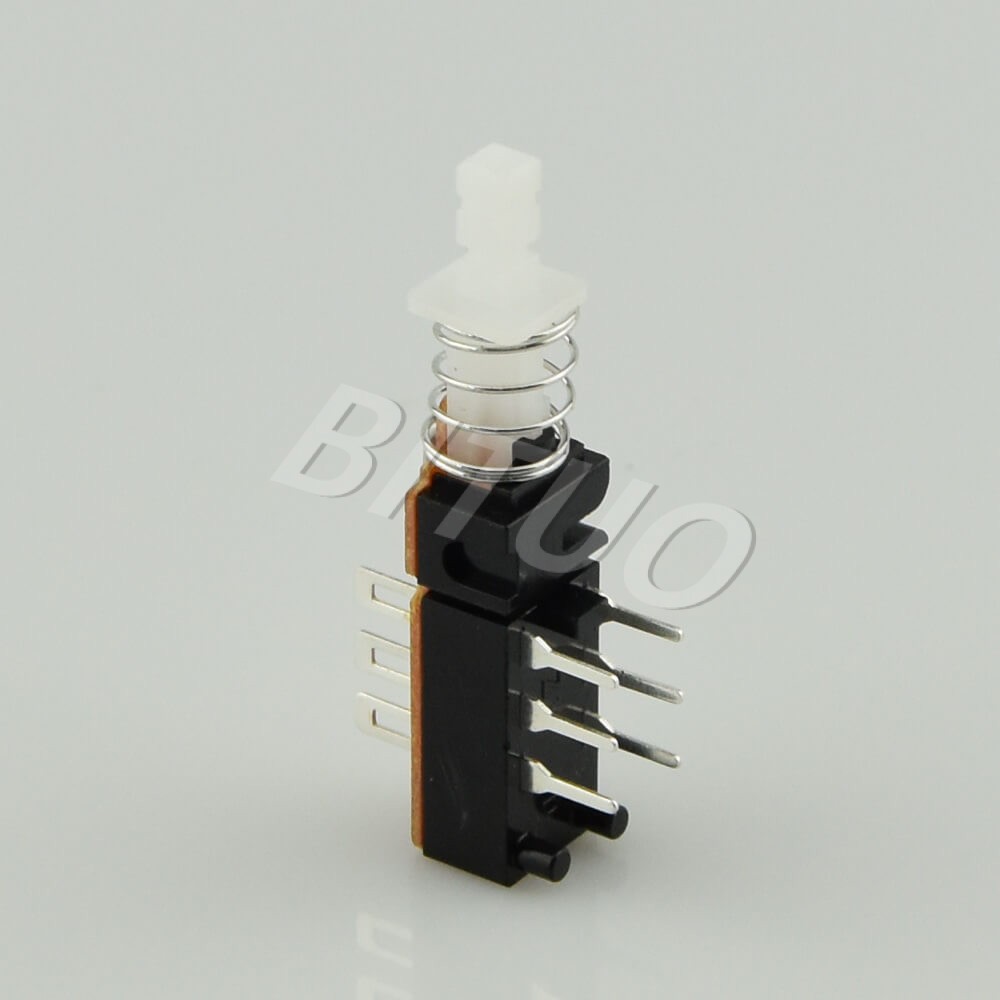

The PBS2X2-A/B 6 Pin Push Button Switch is a highly reliable and versatile component designed for various electronic applications. With its impressive electrical ratings and robust build, this switch is suitable for both professional and DIY projects.
The PBS2X2-A/B Push Button Switch is rated at 0.5A 50VDC, making it ideal for low-power electronic circuits. Its electrical performance ensures consistent operation and long-term reliability, essential for maintaining the integrity of your electronic devices.
This push button switch offers both latching and momentary functions, providing flexibility in usage. Whether you need a switch that stays in its last position or one that resets after being pressed, the PBS2X2-A/B can cater to your needs.
With an operating temperature range of -25℃ to +85℃, the PBS2X2-A/B is built to perform in various environmental conditions. This wide range ensures that the switch remains functional in both cold and hot environments, making it suitable for diverse applications.
The switch features an ON-ON or ON-(ON) connection mode, allowing for different types of circuit configurations. It is designed for PCB installation, ensuring a secure and stable connection. The PCB mount design also facilitates easy integration into your electronic projects.
Classified as IP40, the PBS2X2-A/B provides a reasonable level of protection against dust and other particles. While not waterproof, its construction ensures adequate protection for indoor electronic applications. Additionally, the switch boasts an electrical life of 10,000 cycles, underscoring its durability and reliability.
With a contact resistance of ≤50mΩ, the PBS2X2-A/B ensures minimal voltage drop across the switch, leading to more efficient operation of your circuits. This low resistance is crucial for maintaining the performance and efficiency of electronic devices.
The switch offers an insulation resistance of ≥100MΩ, which is essential for preventing unwanted current flow between different parts of the switch. This high insulation resistance enhances the safety and reliability of your electronic circuits.
The PBS2X2-A/B can withstand a dielectric strength of 250VACmin, ensuring that it can handle voltage spikes and other electrical stresses without failing. This feature is particularly important for maintaining the safety and integrity of your electronic projects.
Available for OEM or ODM, the PBS2X2-A/B can be customized to meet specific requirements. Whether you need a different button color, switch function, or connection mode, this switch can be tailored to your needs, making it a versatile choice for various applications.
The PBS2X2-A/B 6 Pin Push Button Switch is a reliable, versatile, and durable component that meets the demands of various electronic applications. Its excellent electrical ratings, versatile switch functions, wide operating temperature range, and robust construction make it an ideal choice for both professional and hobbyist projects. With options for customization, this push button switch can be tailored to fit your specific needs, ensuring optimal performance and satisfaction.
PBS2X2-A/B is 6 Pin Push Button Switch. This button without LED that offering a rating of 0.5A 50VDC. ON-ON or ON-(ON) are available for this switch. Besides, it uses PCB terminals for quick and easy installation.
All advantages of the Push Button Switch can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!
