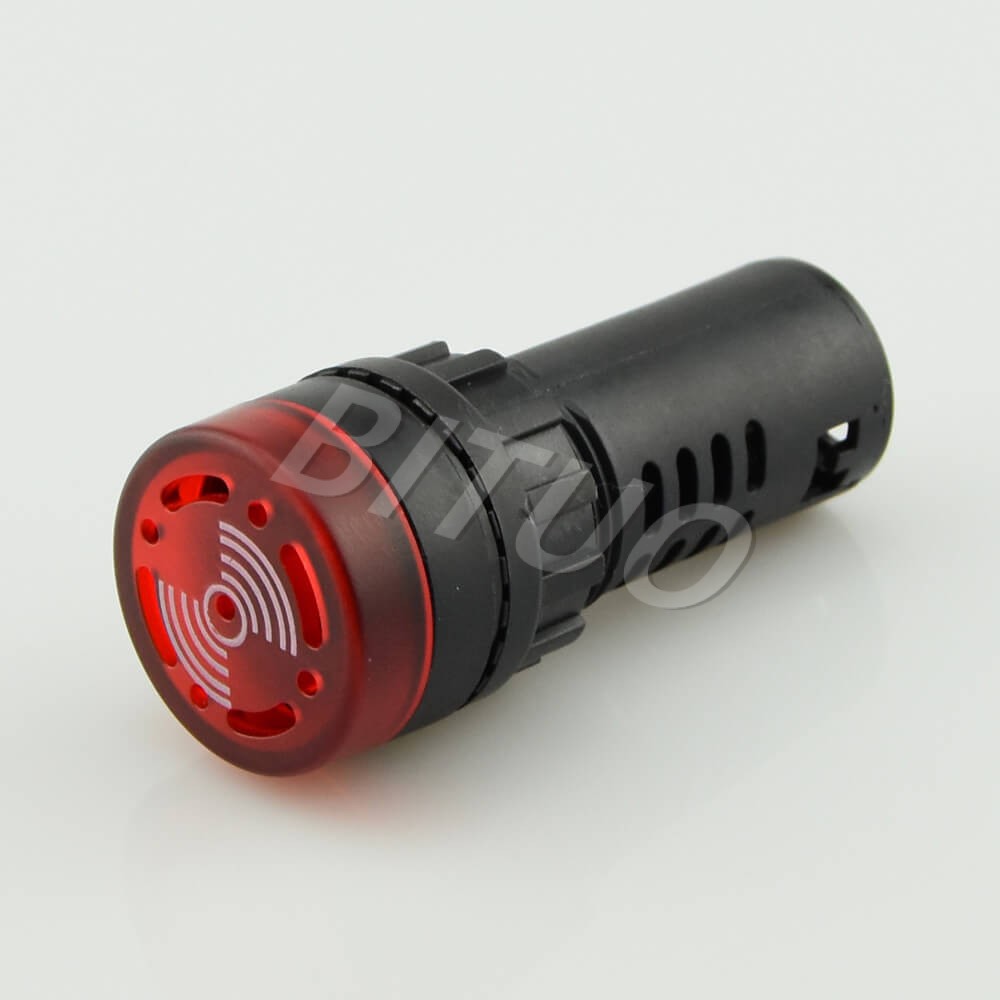

AD16-22SM 22mm Buzzer

    • LED Voltage: 5V-380VAC/DC
    • LED Current: 3mA~20mA
    • LED Color: Red, Yellow, Blue, Green, White
    • LED Life: 30,000 Hours
    • Operating Temperature: -30℃~+80℃
    • Installation Mode: Screw Terminal
    • Panel Mount Size: 22mm
    • IP Class: IP54
    • Contact Resistance: ≤50mΩ
    • Insulation Resistance: ≥2 MΩ
    • Dielectric Strength: 1900VACmin
    • OEM or ODM: Available

BITUO has ten years of experience in production and sales of indicator lights. Our LED indicator lights are manufactured with a chrome housing and nylon base for a superior and depending performance with professional aesthetics. So our LED indicator lights have a 100,000 hours life expectancy and are used in a variety of DC applications.

BITUO’s 22mm Buzzer are RoHS certified. At present, BITUO has two kinds of metal and plastic indicator lights, and metal indicator light has two kinds of waterproof and non-waterproof type. We offer in range of 3mm, 5mm,6mm,10mm,12mm,16mm,20mm,22mm and etc. They are widely used in large-scale mechanical equipment and play an important role in circuit indication and control system. BITUO’s indicator light has a variety of color options, commonly used in red, green, yellow, blue, white and amber. In the same way, it matches all kinds of voltages, 3V, 6V, 12V, 24V, 36V, 48V, 110V, 220V, 380 and etc. which can greatly increase the options for customers and providing convenience for people’s life.

Our company is highly acclaimed in offering a wide range of Indicator Light. We offer this superior make Indicator Light as per the diverse needs of our client. Being economically priced, this Indicator Light is very popular in the industry.

As we always aimed, BITUO is committed to improving people’s lives, just like our slogan, brighten your future. Contact us for 22mm Buzzer soon!



The AD16-22SM 22mm Buzzer is a versatile component designed for both visual and audible signaling with the following specifications:

  • LED Voltage: Supports a voltage range of 5V to 380VAC/DC, providing flexibility for different voltage requirements.
  • LED Current: Rated to handle a current range of 3mA to 20mA, ensuring proper illumination with efficient power consumption.
  • LED Color: Available in Red, Yellow, Blue, Green, and White, offering flexibility for different visual indication needs or color-coding requirements.
  • LED Life: The LED has a long operational life of 30,000 hours, ensuring longevity and consistent performance over an extended period.
  • Operating Temperature: Designed to operate within a temperature range of -30℃ to +80℃, making it suitable for various environmental conditions.
  • Installation Mode: The buzzer is designed for screw terminal installation, providing secure electrical connectivity.
  • Panel Mount Size: The buzzer is designed for a panel mount size of 22mm, making it suitable for applications with moderate panel space.
  • IP Class: The buzzer has an IP54 rating, indicating moderate protection against dust and water splashes.
  • Contact Resistance: The contact resistance is specified as less than or equal to 50mΩ, ensuring efficient electrical connectivity.
  • Insulation Resistance: The insulation resistance is specified as greater than or equal to 2 MΩ, supporting proper isolation in electrical circuits.
  • Dielectric Strength: The buzzer can withstand a minimum of 1900VAC, indicating a high level of electrical strength.
  • OEM or ODM: The option for Original Equipment Manufacturer (OEM) or Original Design Manufacturer (ODM) services is available, allowing for customization based on specific requirements.

The AD16-22SM 22mm Buzzer is suitable for applications where both visual and audible signals are required. The availability of different LED colors and customization options makes it versatile for various use cases. The IP54 rating also makes it suitable for environments where protection against dust and water splashes is necessary.



22mm Buzzer AD16-22SM

AD16-22SM is 22mm Buzzer. This indicator light with screw terminal that offering a rating of 5V-380V AC/DC. And the LED color can be red, yellow, blue, green, white and so on.

All advantages of the indicator light can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!
