MTS-102/103-A2 Mini Toggle Switch

  • Rating: 6A 125VAC/3A 250VAC
  • Switch Function: ON-ON or ON-OFF-ON
  • Terminal Type: PCB Terminal
  • Operating Temperature: -25℃ ~ +85℃
  • Dielectric Strength: 1500VACmin
  • Panel Mount Size: 6mm
  • Electrical Life: 10,000 Cycles
  • Contact Resistance: ≤20mΩ
  • Insulation Resistance: ≥1000mΩ
  • OEM or ODM: Available

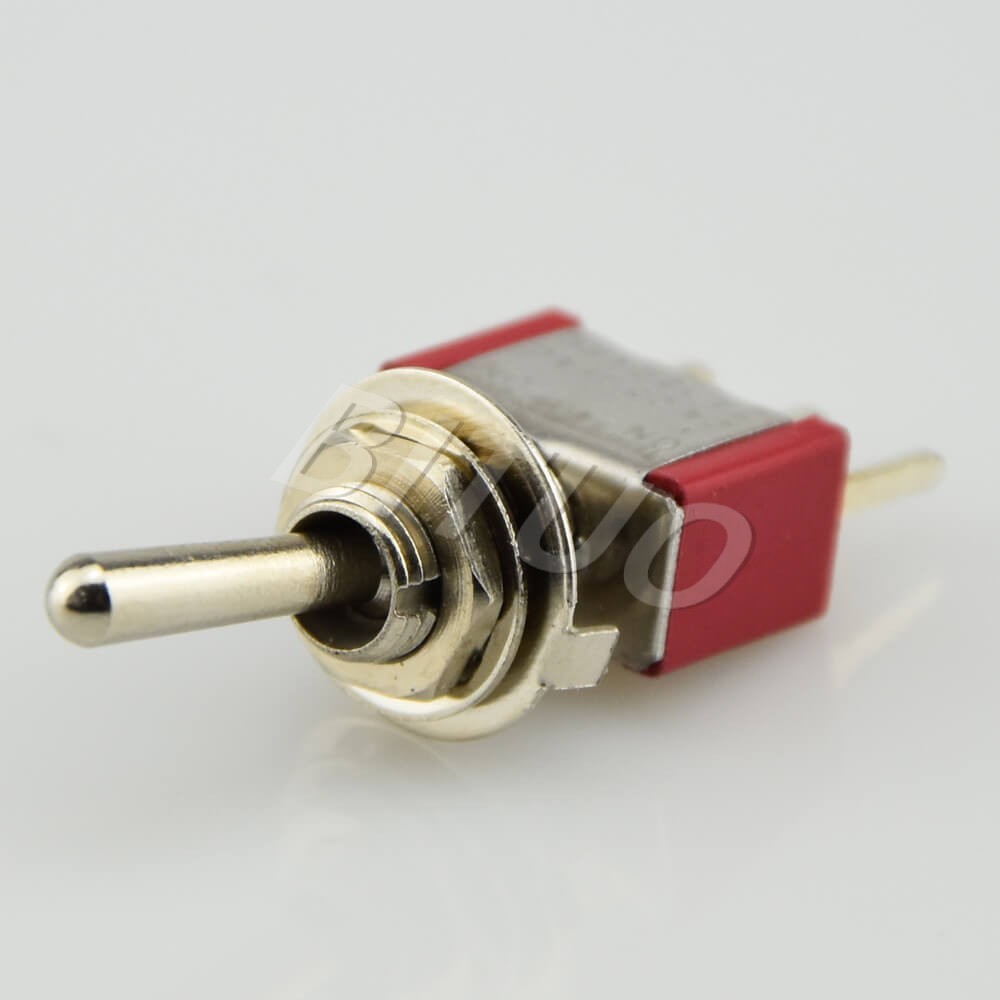

MTS-102/103-A2 Mini Toggle Switch is a 2 Position 6A 125VAC or 3A 250VAC miniature toggle switch. The switch has a chrome-plated brass actuator and PC terminals.

It is RoHS compliant and has an operating temperature range of -25℃ to +85℃. The electrical life is 10,000 cycles and the contact resistance is ≤20mΩ.

The MTS-102/103-A2 mini toggle switch is available in either an ON-ON or ON-OFF-ON configuration. This switch has a PCB terminal style and a panel mount size of 6mm.

Feature Of The Mini Toggle Switch

The MTS-102/103-A2 mini toggle switch is a high-quality, durable switch that is perfect for a wide variety of applications. This switch features a compact design that makes it perfect for use in tight spaces, and the unique connections ensure a secure fit in any panel. The MTS-102/103-A2 is also RoHS compliant and 100% tested to ensure quality and reliability.

What is the MTS-102/103-A2 mini toggle switch?

The MTS-102/103-A2 is a type of mini-toggle switch, commonly used in electronic circuits for various purposes. It is a single-pole, double-throw (SPDT) switch, which means it has three terminals: one common terminal (COM), one normally open terminal (NO), and one normally closed terminal (NC). The MTS-102/103-A2 switch is a miniature toggle switch, typically measuring around 7-8mm in height and width, and it has a lever or paddle that can be flipped up or down to toggle between the NO and NC positions.

The MTS-102/103-A2 mini toggle switch is often used in electronic circuits where a simple on/off or changeover function is required, such as in hobbyist electronics, DIY projects, and small electronic devices. It can be used to control the flow of electrical current in a circuit, allowing or blocking the passage of electricity depending on its position.

The MTS-102/103-A2 switch is known for its small size, durability, and ease of use, and it is commonly available in various configurations, including different pin layouts, solder lug or PCB mounting options, and different lever styles for different applications.

How to troubleshoot a mini toggle switch

If you’re experiencing issues with a mini toggle switch like the MTS-102/103-A2 and need to troubleshoot it, here are some general steps you can follow:

Check for physical damage: Inspect the switch for any visible signs of damage, such as bent or broken terminals, loose connections, or a damaged lever. If you notice any physical damage, it may be affecting the switch’s performance and may need to be repaired or replaced.

Test for continuity: Use a multimeter in continuity mode to check if the switch is functioning properly. Set your multimeter to continuity mode, and touch the multimeter probes to the appropriate terminals of the switch (COM, NO, and NC) while operating the switch. You should hear a beep or see a continuity reading on the multimeter when the switch is in the desired position (e.g., open or closed).

Clean the switch: Dust, dirt, or debris accumulated on the switch contacts may affect its performance. Use a contact cleaner or isopropyl alcohol and a clean, lint-free cloth or cotton swab to gently clean the switch contacts, terminals, and lever. Avoid using excessive force or abrasive materials that could damage the switch.

Check wiring connections: Ensure that the switch is wired correctly according to the circuit diagram or wiring diagram for your specific application. Double-check the connections of the switch terminals to ensure they are securely connected and make proper contact with the circuit.

Test with a known working switch: If possible, try swapping the suspect switch with a known working switch of the same type and rating to see if the issue persists. This can help you determine if the problem is with the switch or elsewhere in the circuit.

Consider environmental factors: Mini toggle switches, like any other electronic component, can be affected by environmental factors such as temperature, humidity, and mechanical stress. Consider if the switch is being used within its specified operating conditions and if any environmental factors could be affecting its performance.

If you are unable to troubleshoot the mini toggle switch successfully or if the switch is damaged beyond repair, you may need to replace it with a new one to restore proper functionality to your circuit.

Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!
