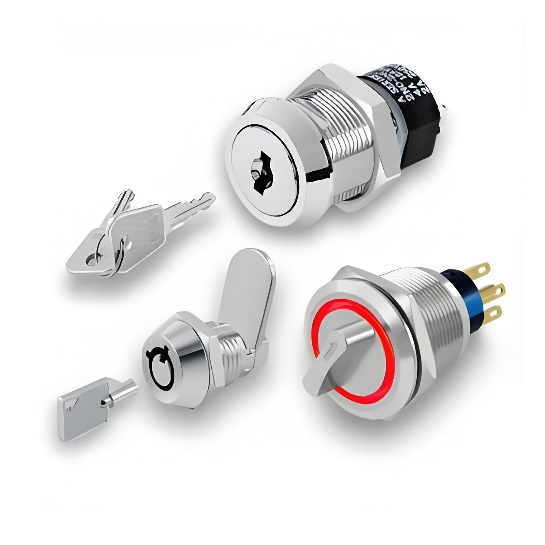

What is a Key Switch?
A key switch is a device that combines a physical key mechanism with an electrical switching system, used to control power or access in various systems. These switches are versatile and can be adapted for different uses, such as in security systems, machinery, or electrical circuits.
The defining feature of a key switch is its ability to limit operation to individuals with the designated key, which provides an additional level of control compared to general-purpose switches like rockers or toggles. This feature makes them ideal for applications requiring restricted access and operational security. While keyless solutions are becoming more common, key switches remain a practical choice due to their straightforward design and ability to cater to diverse applications.

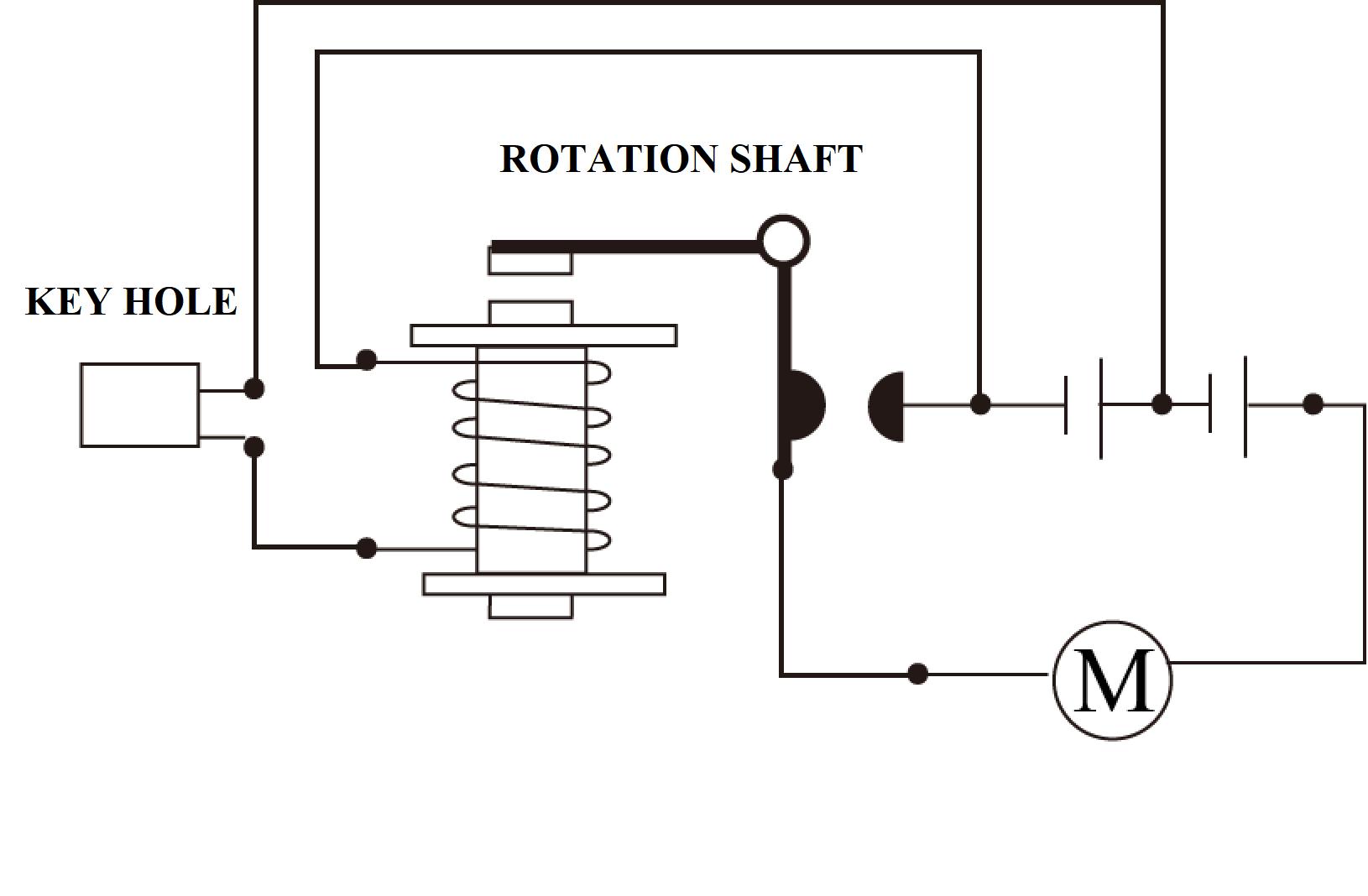

How Do Key Switches Work?
Key switches’ functionality revolves around a mechanical locking mechanism paired with an electrical circuit. When a correctly designed key is inserted and turned, it either establishes or breaks the electrical circuit, thereby controlling the connected system. This allows the system to switch between states such as “on” and “off” or even alternate between multiple functional modes.
The operation of a key switch ensures that only those with the authorized key can manipulate the switch, offering a controlled method of access. Many key switches are built with defined positions that remain steady until altered by the key, making them suitable for applications requiring stability in operations. Additionally, modern designs often include features that prevent tampering, ensuring their reliability in environments where access control is necessary. These characteristics make key switches a practical choice for applications requiring limited access and consistent performance.
Key Switch Types
Key switches are available in a variety of designs. From basic tamper-resistant models to highly specialized custom designs, the selection depends on the application’s requirements, security considerations, and environmental factors.

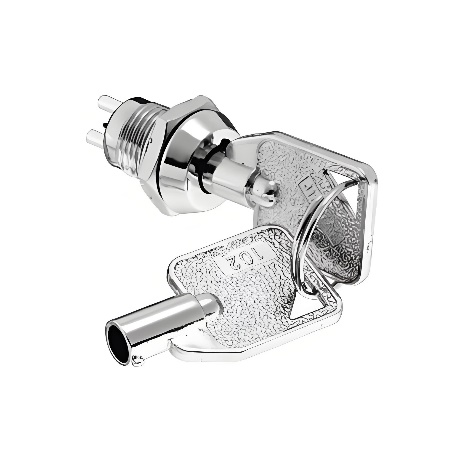

Tubular Key Switches
Tubular key switches are designed with a cylindrical key mechanism, providing a higher level of security compared to standard flat keys. They are commonly used in vending machines, industrial control panels, and secure lockers, ensuring only authorized personnel can access or operate the connected systems.

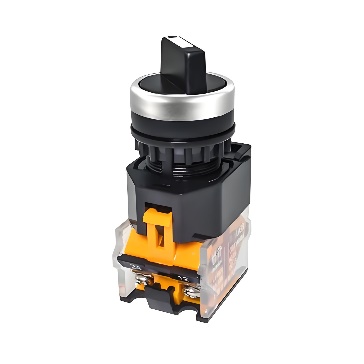

Rotary Key Switches
Rotary key switches function by allowing the key to rotate between multiple preset positions, such as “on,” “off,” or other operational modes. These switches are widely used in machinery control panels where selecting between various configurations or settings is required. Their ability to support multiple positions makes them versatile for applications that demand precise control over different operational states.

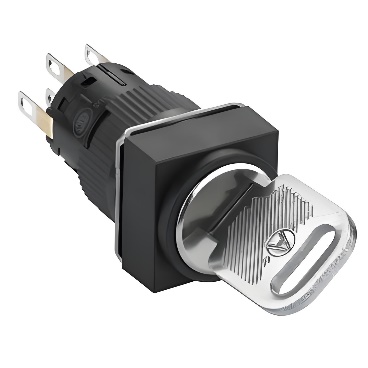

Push-Button Key Switches
Push-button key switches combine the security of a key mechanism with the ease of a push-button interface. Once the correct key is inserted and turned, the button can be pressed to activate or deactivate the connected system. This type of key switch is frequently used in public access systems, such as transportation terminals or entry doors, where simplicity and security need to coexist.

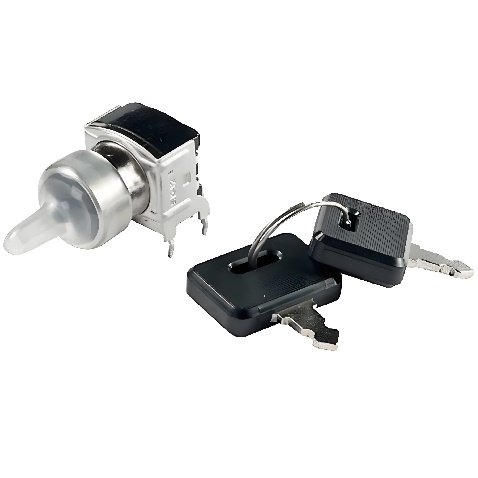

Tamper-Resistant Key Switches
Tamper-resistant key switches are built with robust housing to withstand unauthorized attempts to access or damage the switch. They are commonly installed in public infrastructure, including lighting systems in restrooms and corridors. These switches are specifically designed to endure heavy use and provide long-term functionality, even in high-traffic environments, making them highly reliable for public applications.

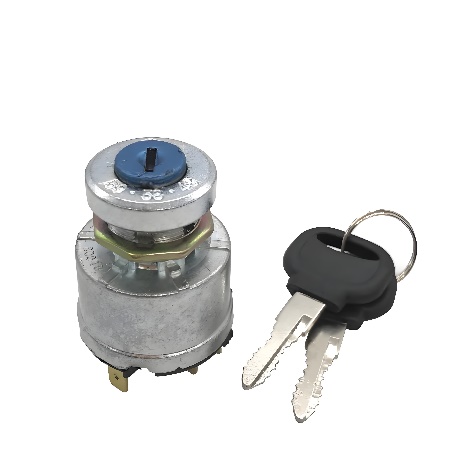

Spring-Loaded Key Switches
Spring-loaded key switches include a mechanism that automatically returns the key to its default position after being turned. These switches are particularly useful in temporary control systems, such as emergency shutdowns or alarms, where the system needs to reset immediately after activation. Their ability to quickly return to a neutral position ensures the system is ready for subsequent use without manual intervention.

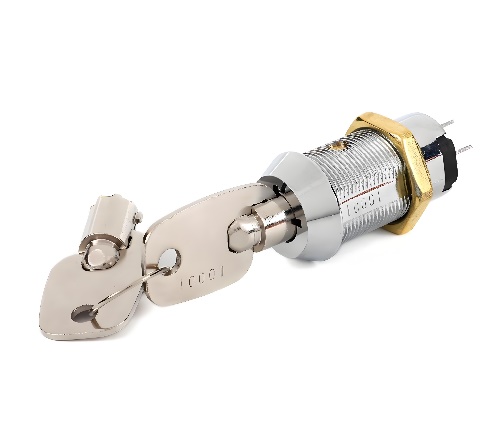

Momentary Key Switches
Momentary key switches activate the electrical circuit only while the key is being turned and held in position. As soon as the key is released, the circuit disconnects, making them suitable for applications requiring brief electrical contact. These switches are often used in testing or diagnostic systems where a short-term connection is needed without altering the system’s overall configuration.

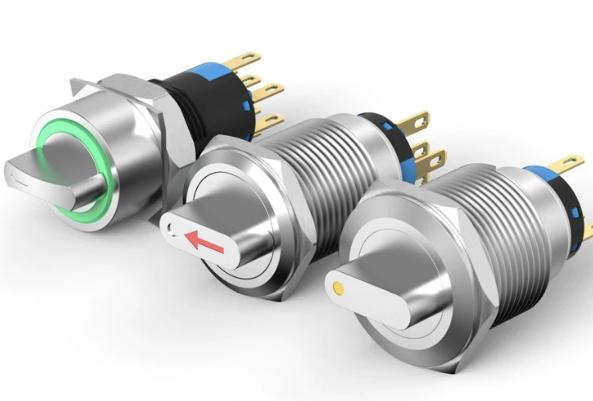

Illuminated Key Switches
Illuminated key switches feature an integrated light indicator that provides visual feedback on the switch’s operational status, such as whether it is in the “on” or “off” position. This design is particularly beneficial in control rooms or environments where operational clarity is essential. By providing immediate visual confirmation, illuminated key switches enhance usability and reduce the risk of errors.

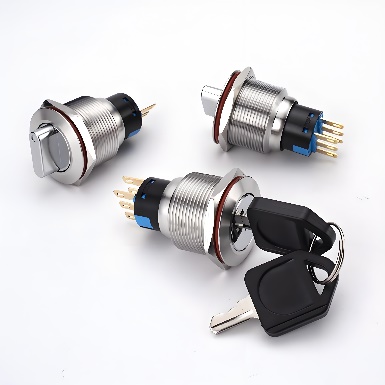

Double-Pole Key Switches
Double-pole key switches are designed to control two independent circuits simultaneously with a single key operation. This feature makes them ideal for systems that require dual functionality, such as activating separate circuits at the same time. These switches are commonly used in advanced control systems, offering a streamlined solution for managing multiple circuits.

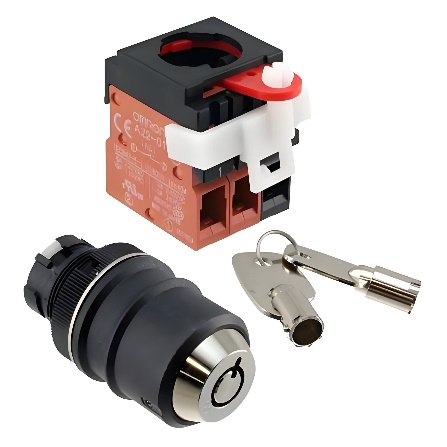

Custom Key Switches
Custom key switches are specifically designed to meet unique industry or user requirements. These switches can include features such as tamper-proof designs, unique key shapes, or integration with IoT systems for enhanced functionality. They are widely used in specialized equipment like medical devices, military systems, and automation setups, ensuring the switch’s capabilities align perfectly with the intended application.
Applications of Key Switches
Industrial Environments
In factories and warehouses, key switches are used to control heavy machinery and assembly lines, ensuring that only trained personnel can operate these systems. This prevents unauthorized use and reduces the risk of accidents.
Security Systems
Key switches are integral to fire alarm systems, restricting access to control panels and preventing tampering during emergencies.
They are also used to secure electrical panels, fuse boxes, and access control systems in buildings.
Public Infrastructure
Key switches control lighting systems in public spaces such as corridors and restrooms. Tamper-resistant designs ensure they remain functional and secure in high-traffic areas.
IT and Data Centers
In IT environments, key switches secure access to server cabinets and data systems, protecting sensitive information from unauthorized personnel.
Specialized Equipment
In medical facilities, key switches are used to control high-stakes equipment like X-ray machines and patient monitoring systems, ensuring they are operated only by authorized staff.
Elevators
Key switches are commonly found in elevators, where they restrict access to specific floors or activate service modes for maintenance purposes.
Selecting the Right Key Switch
- Choosing the right key switch involves evaluating your specific needs and application requirements. Factors to consider include:
- Application: Determine where the key switch will be used (e.g., industrial, security, medical) and the level of security required.
- Electrical Ratings: Ensure the switch can handle the voltage and current demands of your system.
- Durability: Look for tamper-resistant or weatherproof designs if the switch will be used in harsh environments.
- Key Design: Tubular keys offer higher security, while flat keys may suffice for general use.
Final Thoughts
By understanding how key switches work and their various applications, you can make informed decisions when selecting the right switch for your needs. Whether you’re securing sensitive equipment, managing public systems, or improving workplace safety, key switches offer a robust and efficient solution.
