Switches are one of the most fundamental yet often overlooked components in electrical circuits, with momentary switches standing out for their broad applicability. Typical applications of momentary switches include keyboard keys, doorbells, and control panels for various machines. Understanding the principles, applications, and advantages of momentary switches can enhance the efficiency of related devices and electronic systems. This guide provides a comprehensive overview of the features and uses of momentary switches, enabling you to fully leverage their potential.
What is a Momentary Switch?
A momentary switch, also known as a “momentary contact switch,” is a type of switch that operates only briefly or remains “on” for a short duration. Once the actuation force is released, the switch automatically returns to its default “off” position. This mechanism is achieved through a spring-loaded design, allowing it to reset to its initial state as soon as external pressure is removed. This contrasts sharply with latching switches, which maintain their state until manually changed.
The defining characteristic of a momentary switch is its instantaneous nature, making it ideal for applications requiring precise timing and control. Common examples include walkie-talkies, doorbells, keyboard keys, and machine control panels. Each actuation is an independent event, ensuring accurate input and fast responsiveness in every use case.
How Momentary Switches Work?
A momentary push button switch operates by temporarily completing or interrupting a circuit. Its internal mechanism is straightforward, consisting of an actuator (such as a button or lever) and electrical contacts, which work together via a spring mechanism. When the actuator is pressed, the circuit remains closed, allowing current to flow. Once the pressure is released, the built-in spring mechanism pushes the contacts back to their original position, breaking the circuit and halting the flow of current.
Types of Momentary Switches
Momentary switches can be categorized based on their functionality and structural characteristics into the following types:
Illuminated or LED Momentary Push Button Switch
Illuminated or LED momentary push button switches feature built-in LED lights that provide visual feedback during operation. These switches are commonly used in control panels that require status indication, such as industrial consoles, automotive dashboards, or household appliances. The illumination helps users easily identify the switch’s status, especially in low-light environments.

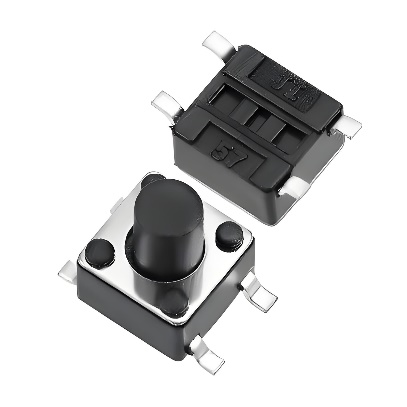

Tactile Switch
Tactile switches are renowned for their compact size and high sensitivity, making them one of the most common types of switches in consumer electronics. These switches provide a subtle tactile feedback, allowing users to feel a slight “click” when pressed, ensuring precise input. They are frequently used in small electronic devices such as remote controls, gaming controllers, and headphones.

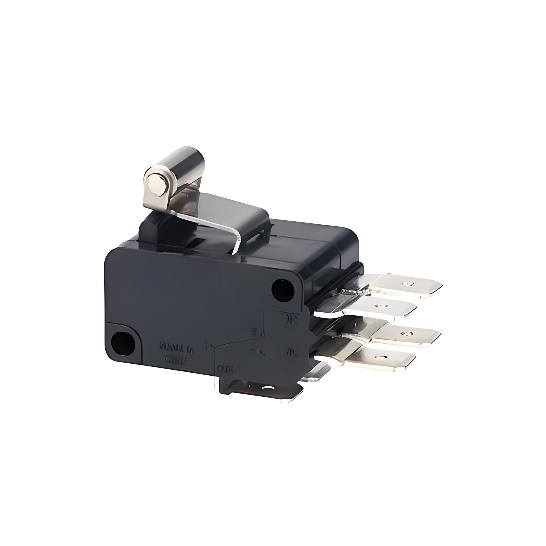

Micro Switch
Micro switches feature a compact internal design and can be triggered with minimal pressure. They are widely used in household appliances (such as refrigerator door light switches), industrial machinery (like machine tool safety devices), and automotive electronics (e.g., car door switches).
Foot Switch
Foot switches are operated using the foot, freeing the hands for other tasks, making them ideal for scenarios requiring frequent activation or when hand operation is inconvenient. These switches are commonly used in medical equipment (e.g., dental chair controls), industrial devices (e.g., welding machines), and musical equipment (e.g., effects pedal switching). Typically designed as normally open (NO) switches, foot switches activate the connected device when pressed and deactivate it upon release.
Capacitive Touch Switch
Capacitive touch switches operate by detecting changes in capacitance caused by finger touches, eliminating the need for physical pressure to activate. These switches are widely used in modern touch-sensitive devices, such as smartphones, tablets, and appliance control panels. With their sleek design, responsive functionality, and multi-touch support, they are essential components for creating modern, interactive interfaces.

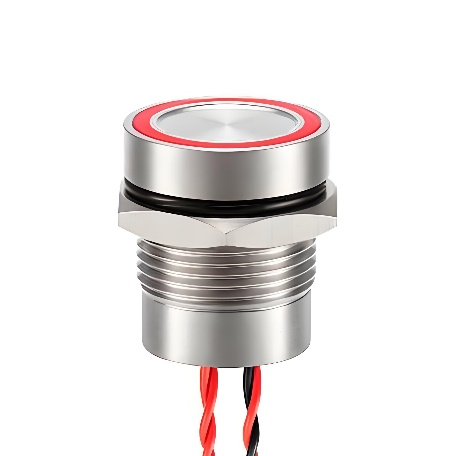

Piezo Switch
Piezo switches leverage piezoelectric materials to detect pressure changes, offering durable and robust performance. These switches are designed to withstand extreme environments, including high temperatures, moisture, and chemical exposure. They are ideal for rugged applications, such as outdoor equipment, military devices, and industrial automation systems.

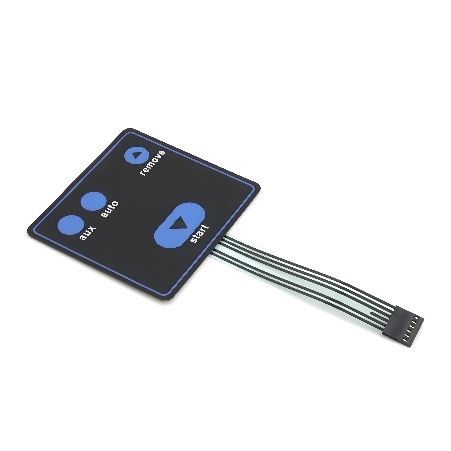

Membrane Switch
Membrane switches are flat, flexible, and highly versatile, commonly found in keyboards, appliance control panels, and medical devices. Constructed with multiple layers, including conductive film and protective coatings, they provide a dustproof and waterproof operational surface. Additionally, they support complex patterns and backlighting, making them a top choice for devices requiring a sleek and lightweight design.

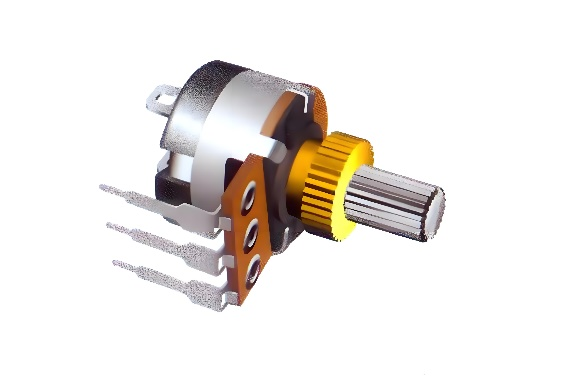

Rotary Momentary Switch
Rotary momentary switches provide temporary contact by rotating to a specific position, making them suitable for devices requiring precise rotational control, such as instrumentation and communication equipment. Their design enables multi-function switching through rotational actions and includes a momentary reset feature to ensure efficient operation.

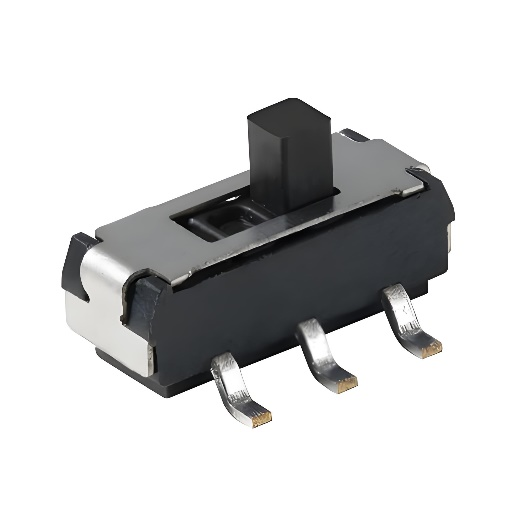

Slide Momentary Switch
Slide momentary switches activate a circuit by sliding to a specific position and return to their default state after the slide is released. These switches are frequently used in small electronic devices, such as portable audio equipment and toy controllers, offering a simple and intuitive user experience.
Classification by State
- Normally Open (NO): In its default state, the circuit is open, and the connection is only established when the switch is pressed.
- Normally Closed (NC): A normally closed momentary switch keeps the circuit closed by default. When pressed, it breaks the circuit.
- Double Throw (DT): A double-throw momentary switch allows switching between two different circuits, making it suitable for applications that require toggling between two functions.
How to Choose the Right Momentary Push Button Switch
Size
The size of the switch is the first factor to consider during the selection process. It must fit perfectly within the mounting space of your device or control panel. A switch that is too large may not install properly, while one that is too small might lead to inconvenient operation or unstable connections. Therefore, always measure the available installation space and ensure the switch size meets your requirements.
Rated Current and Voltage
The rated current and voltage of the switch must match the specifications of the electrical load it controls. Selecting a switch with a current rating that is too low could cause overheating or failure, while insufficient voltage ratings may compromise safety. Conversely, switches with unnecessarily high ratings could increase costs. Before selecting a switch, verify the maximum current and voltage requirements of your device.
Material
The material of the push button switch directly impacts its durability, performance, and appearance. Common material options include:
- Plastic: Lightweight and durable, suitable for consumer electronics and everyday use.
- Metal: Robust and long-lasting, ideal for industrial and heavy-duty applications.
- Specialized Materials: Designed for specific applications, such as high-temperature or corrosion-resistant environments.
Choosing the appropriate material based on the application and functional needs ensures superior performance and design for the push button switch.
Environmental Adaptability
Choose switches with specific protective features depending on the usage scenario:
- Waterproof and Dustproof Switches: Ideal for outdoor or high-humidity environments, with high IP protection ratings.
- High-Temperature and Corrosion-Resistant Switches: Suitable for extreme industrial applications, such as piezo switches.
Feedback and Functionality
When selecting a switch, consider whether tactile, visual, or auditory feedback is required for your application:
- Illuminated or LED Switches: Provide visual feedback and are suitable for devices requiring status indicators.
- Tactile Switches: Offer physical feedback, enhancing operational accuracy and user experience.
Mechanical Durability
Ensure the switch can handle the operational frequency of its intended application. Consumer electronics typically require responsive and durable switches, while high-frequency equipment (e.g., industrial machinery) should prioritize switches with longer design lifespans, such as micro switches or piezoelectric switches.
Applications
Here are some typical application areas:
Consumer Electronics
- Used in remote controls and gaming controllers to provide responsive and precise control.
- Found in household appliances such as doorbell buttons, microwave control panels, and coffee machine buttons for triggering short-term functions.
Industrial Automation
- Foot switches are commonly used in industrial equipment like welding machines and punch presses, freeing operators’ hands and improving convenience.
- Micro switches and normally closed (NC) switches are used for emergency stop buttons or equipment protection, ensuring devices can quickly shut down when necessary.
Automotive Industry
- Momentary push button switches are used in electric windows for temporary adjustment of window positions.
- Tactile and micro switches are applied for controlling interior reading lights and dashboard functions.
Medical Equipment
- Foot or touch switches are often used for adjusting the height and angle of hospital beds.
- Foot switches in dental equipment provide precise start and stop control.
Communication Devices
- Normally open (NO) momentary switches are widely used in walkie-talkies for push-to-talk functionality, activating communication only when pressed.
- Found in telephones for answering or hanging up calls, offering instant response.
Building and Home Automation
- Capacitive touch switches are used in smart homes to control lighting and blinds, enabling modern automated control.
Touch and Control Panels
- Capacitive touch switches provide high sensitivity for touch operation in smartphones, tablets, and other devices.
- Membrane switches are used in medical devices and industrial control panels, offering intuitive user interfaces.
Special Applications
- Piezo switches, known for their durability and resistance to harsh environments, are used in military communication devices and weapon control systems.
- Momentary switches with Braille designs are used in elevator buttons, offering reliable and temporary signal activation.
How to Protect Your Momentary Switch
Protecting momentary switches is essential for extending their lifespan and ensuring reliable performance in your devices. Here are some key protection measures:
1. Select the Right Switch for the Environment
Ensure that the chosen switch meets the requirements of the operating environment:
- Waterproof and Dustproof: For humid, dusty, or outdoor environments, choose switches with a high IP rating (e.g., IP65 or IP68) to prevent short circuits or failures caused by moisture or dust ingress.
- Heat and Corrosion Resistance: For high-temperature or chemical exposure environments, opt for materials with heat and corrosion resistance, such as piezo switches or switches with metal casings.
2. Avoid Overloading
Ensure that the switch’s voltage and current ratings match the circuit requirements:
- Prevent Excessive Current: Exceeding the switch’s current rating can cause overheating or damage.
- Use Fuses or Circuit Breakers: Include fuses or circuit breakers in the circuit to prevent damage from sudden overloads.
3. Prevent Physical Damage
Install switches properly to avoid damage caused by external forces or improper handling:
- Add Protective Covers: In industrial settings or areas with frequent use, add covers to protect switches from accidental impacts or unintended activation.
- Secure Installation: Ensure the switch is firmly mounted to prevent performance degradation caused by vibration or loosening.
4. Perform Regular Maintenance
Regularly inspect and clean switches to ensure optimal operation:
- Check Wiring: Ensure all connections are secure to prevent poor contact or circuit interruptions.
- Remove Dirt: Clean the surface and contact points of the switch to prevent dust or oxidation buildup from affecting conductivity.
- Lubricate Moving Parts: For mechanical switches, apply appropriate lubrication to moving components to reduce wear.
5. Avoid Excessive Use
Control operation frequency to prevent excessive wear on mechanical or electrical components:
- Choose High-Durability Switches: For high-frequency applications, select switches with extended mechanical lifespans, such as micro switches or piezo switches.
- Minimize Unnecessary Use: Reduce unnecessary activations to prolong the actual service life of the switch.
6. Avoid Extreme Operating Conditions
Prevent operation under conditions beyond the switch’s design specifications:
- Avoid Extreme Temperatures: In environments with extreme heat or cold, use specialized switches designed for the applicable temperature range.
- Protect Against Vibration and Shock: For mobile or portable equipment, ensure the switch has adequate vibration and shock protection.
7. Choose High-Quality Products
Select certified and reliable switches for optimal performance:
- Certification Standards: Prioritize switches that comply with international standards such as CE, UL, or RoHS.
- Reputable Suppliers: Purchase switches from trusted manufacturers or suppliers to ensure quality and durability.
By following these measures, you can protect your momentary switches effectively, ensuring they deliver consistent and reliable performance over their operational lifespan.
Final Thoughts
Momentary push button switches are essential components in modern technology, offering precise control during brief activation periods. Widely used across consumer electronics, industrial machinery, and home automation systems, these switches are valued for their versatility, reliability, and user-friendly design.
