Tactile switches, also known as tactile pushbutton switches, are one of the most common components in electronics. They are small, yet incredibly significant in their application, providing feedback to users and controlling a variety of functions. Whether it’s in everyday devices like smartphones, remotes, or specialised industrial machinery, tactile switches are an essential part of modern electronics.
In this blog, we’ll explore what tactile switches are, how they work, their benefits, types, wiring techniques, and the many applications that make them indispensable in electronics today.

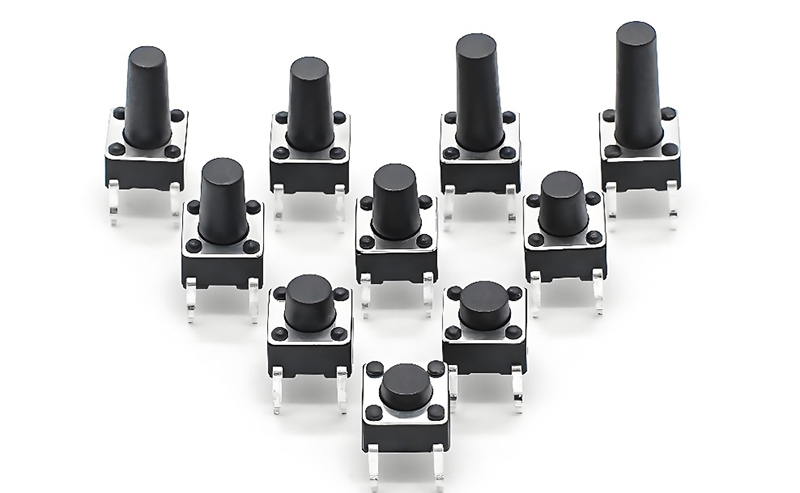

What Are Tactile Switches?
A tactile switch is a type of mechanical switch used in electronic circuits that provides physical feedback (tactile feedback) when pressed. This feedback is typically in the form of a “click” or a slight bump when the switch is engaged.
The purpose of this feedback is to let the user know that the switch has been activated. These switches are incredibly popular in devices that require user input, like keyboards, remote controls, and other handheld gadgets.
The mechanism behind a tactile switch typically involves a dome-shaped structure that flexes when pressed, causing a metal contact to close the circuit, completing the connection and sending a signal to the device’s microcontroller or processor.
What’s the Difference Between a Tactile Switch and a Push Button Switch?
Tactile switches and push button switches are often used interchangeably, but there are subtle differences between them that affect their application.
Feedback: The key difference lies in the feedback they provide. Tactile switches offer distinct physical feedback, usually a “click” or tactile bump, which tells the user that the switch has been activated. Push button switches, on the other hand, may not always provide feedback (depending on the design), or it may not be as pronounced as a tactile switch.
Design: Tactile switches tend to be smaller and used in applications where space is limited, such as in tiny keypads, electronic devices, or automotive dashboards. Push button switches are usually larger, used in applications that require more robust interaction, such as light switches or large machinery controls.
Functionality: Push button switches often function by either latching or momentarily connecting two contacts. Some push buttons are designed to stay pressed, whereas tactile switches are generally momentary, meaning they return to their original position once released.
What Are the Benefits of Tactile Switches?
Tactile switches have several advantages that make them essential in various electronic applications:
Feedback and Confirmation
The most obvious benefit of tactile switches is the physical feedback they provide. The tactile sensation ensures users that the switch has been properly activated, reducing the chances of repeated presses or missed interactions.
Durability
Tactile switches are designed to be used for many cycles. They are generally more durable than membrane switches or other non-mechanical types of switches, ensuring longevity and reliability in high-usage applications.
Compact Size
Tactile switches are small in size, which allows for their use in compact devices. This small form factor makes them ideal for handheld gadgets, remote controls, and other portable electronics.
Low Power Consumption
Tactile switches are efficient in terms of power consumption. They only use power when they are pressed, making them ideal for battery-powered devices.
Cost-Effectiveness
Tactile switches are relatively inexpensive to manufacture, making them a cost-effective option for both low and high-volume applications.
Versatility
They can be used in a wide range of applications, from consumer electronics to industrial machines, providing both versatility and reliability.

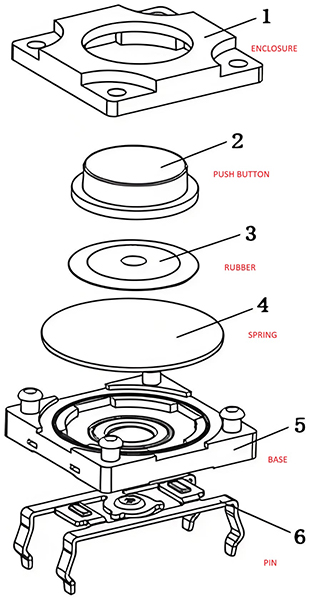

How Does the Tactile Switch Work?
The working mechanism of a tactile switch is simple but effective.
Here’s how it works:
The Button: When you press down on a tactile switch, the actuator (the button itself) pushes against a flexible dome or membrane that sits on top of two metal contacts.
The Contact Closure: As you press the button, the flexible dome deforms and closes the gap between the contacts, which completes the circuit. This is when the electrical signal is sent to the microcontroller, processing unit, or any other part of the system designed to receive the signal.
Tactile Feedback: Once the dome is deformed, it gives a physical sensation, usually a click or a bump, which lets the user know that the switch has been successfully activated. The dome then returns to its original shape once the pressure is released, and the contacts open, ending the electrical connection.
This feedback loop ensures that users know the exact moment the switch has been engaged, preventing unnecessary errors.
Types of Tactile Switches
There are several types of tactile switches, each suited to different applications.
The most common types include:

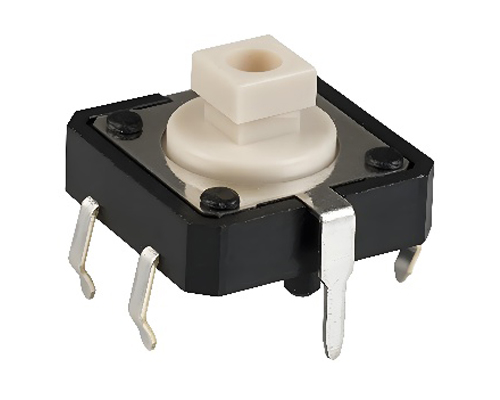

Through-Hole Tactile Switches
These are designed to be mounted through holes in a PCB (Printed Circuit Board) and are soldered in place.
They are often used in applications where the switch needs to be more robust and visible.

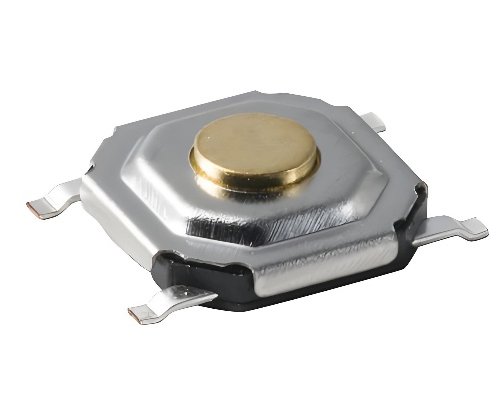

Surface-Mount Tactile Switches
These switches are designed to be soldered directly onto the surface of a PCB.
They are ideal for compact designs where space is limited.

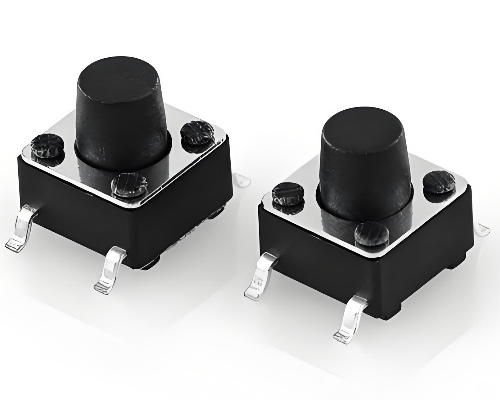

Momentary Tactile Switches
These switches only stay pressed while the user is applying pressure, and they return to their default position once released.
Momentary switches are widely used in gadgets like keypads, remote controls, and calculators.

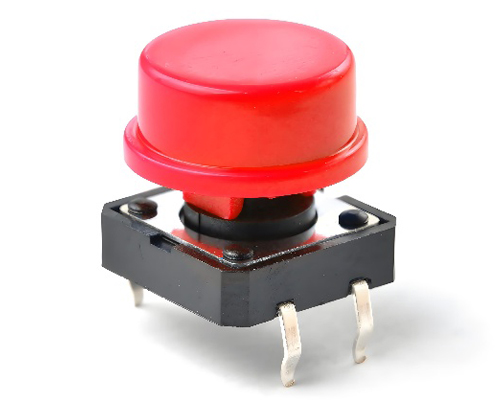

Latching Tactile Switches
Unlike momentary switches, latching tactile switches remain in an “on” or “off” position after being pressed.
They are often used in applications like power switches.
Dome Switches
These are the most common type of tactile switch, often used in portable devices and wearables. They are small and provide a crisp tactile feedback, thanks to the dome-shaped actuator.

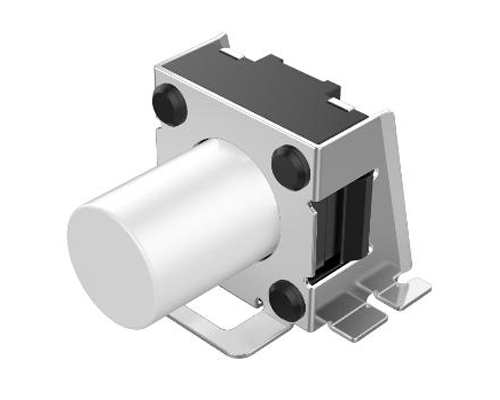

Mechanical Tactile Switches
These switches often feature mechanical components that provide a more pronounced tactile feel.
They are commonly found in computer keyboards and other high-durability applications.
How to Wire a Tactile Switch?
Wiring a tactile switch is relatively straightforward.
Here are the steps to follow:
Identify the Pins: Most tactile switches have two or four pins, depending on the design. Typically, two pins are used for the switch’s functionality, while the others may be used for mounting or additional features.
Connect to the PCB: For through-hole switches, insert the pins into the designated holes in the PCB. For surface-mount switches, place the pins onto the PCB and solder them into place.
Solder the Wires: Once the pins are positioned, solder the wires to the appropriate pins. Make sure to connect one wire to each of the two terminals, ensuring a closed circuit when the switch is pressed.
Testing: After soldering the switch into place, test it by applying pressure. You should feel the tactile feedback and see that the circuit is closed when the switch is pressed.
What Are Common Tactile Switch Applications?
Tactile switches are used in a wide array of applications, from everyday consumer products to industrial machinery.
Some of the most common applications include:
Computer Keyboards
Many computer keyboards, especially in laptops and compact designs, feature tactile switches for individual keys.
These switches provide the necessary tactile feedback and actuation for efficient typing.
Industrial Control Panels
In industrial environments, tactile switches are used in control panels to allow operators to manage machinery and equipment, ensuring smooth operation and process control.
Automotive Controls
Automotive dashboards and steering wheel controls utilize tactile switches to enable drivers to adjust settings such as audio, cruise control, and navigation.
Security Systems
Tactile switches are essential in security system keypads and alarm panels, enabling functions like arming/disarming the system and entering security codes.
Consumer Electronics
Tactile switches are widely used in consumer electronics such as remote controls, game controllers, smartphones, tablets, digital cameras, and audio equipment.
They often serve functions like power on/off, volume control, and menu navigation.
Industrial Machinery
Tactile switches are vital in industrial machinery and control systems, allowing operators to input commands and configure equipment with ease.
Telecommunications Equipment
Tactile switches are used in landline phones, mobile phones, and other communication devices to facilitate dialing and menu navigation.
Medical Devices
Tactile switches are employed in a range of medical devices, including patient monitoring systems and diagnostic equipment, offering reliable input for critical functions.
Calculators
Tactile switches are commonly found in calculator keypads, enabling users to input numbers and perform mathematical operations with precision.

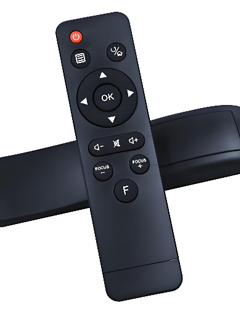

Remote Controls
Tactile switches are integral to remote controls for televisions, DVD players, and other entertainment devices, facilitating control of various functions like changing channels and adjusting settings.
Gaming Consoles
In gaming consoles, tactile switches are a key component of control buttons, providing essential feedback for interactive gaming experiences.
Home Appliances
Some home appliances, such as microwave ovens, use tactile switches for setting cooking times, temperatures, and other controls.
Conclusion
Tactile switches play a vital role in modern electronics, providing user-friendly interfaces, providing feedback, and ensuring reliable operation of countless devices. Compact, cost-effective, and versatile, they are indispensable in a wide range of applications. From smartphones to industrial machinery, tactile switches create a tangible connection between users and machines, ensuring a satisfying response with every press.
