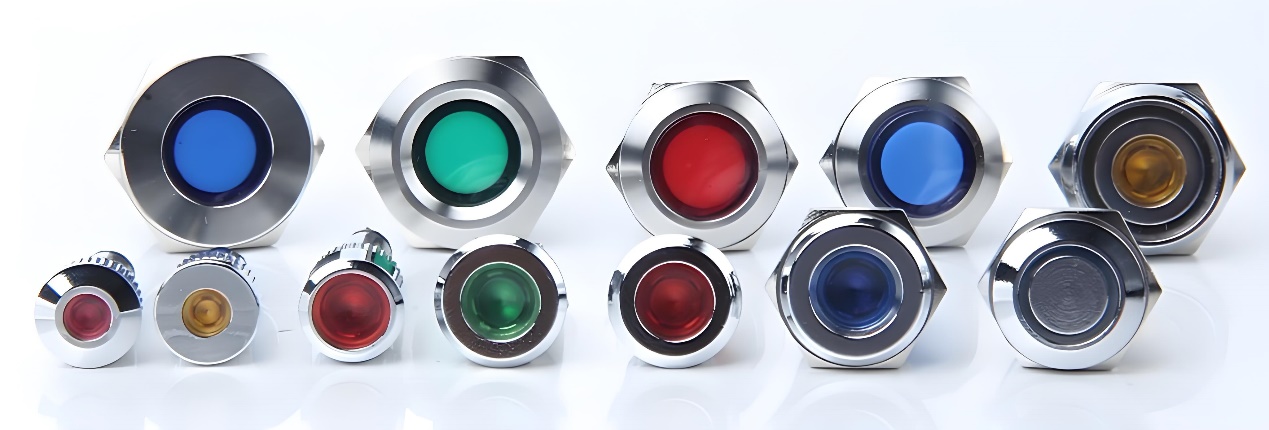

The Complete Guide to LED Indicators

It is essential for everyone working in technology to understand the function and importance of LED indicators.

LED indicators are one of the most widely used small electronic devices used to reflect the working status of a circuit, device status, faults, and other signal indications. It is essential for everyone working in technology to understand the function and importance of LED indicators. This complete guide to LED indicators will provide an in-depth look at the various types of indicator lights, their applications, and best practices for their use. What are LED Indicator Lights?

The Complete Guide to LED Indicators

What are LED Indicator Lights?

LED indicator lights, also known as Light-Emitting Diode Indicators, are small, energy-efficient lights commonly used in various electronic devices and equipment. They use LEDs, which are semiconductor devices that convert electrical energy directly into light when an electric current flows through them.

Unlike traditional bulbs, LEDs are more energy-saving and have a longer lifespan. These lights come in various colors like red, green, and yellow, making them ideal for indicating power status, signaling specific conditions, or providing visual feedback on device operations.

LED indicator lights are reliable and versatile, enhancing user experience and device functionality across appliances, automobiles, electronics, and industrial equipment.

Types of LED Indicator Lights

LED indicator lights come in a variety of types, each serving a specific purpose depending on the application. The most common types of LED indicator lights include:

LED Indicator Light with Wire

This type features a wire lead attached to the LED body, allowing for easy installation and connection to power sources. It’s versatile and commonly used in automotive dashboards, electronic devices, and DIY projects where direct wiring is preferred.

LED Indicator Light with Wire
Pin LED Indicator Light

Pin LED Indicator Light

These are designed with pin-style terminals that can be soldered onto circuit boards or inserted into sockets, providing a secure connection for precise placement in electronics, appliances, and control panels. They offer a compact and reliable solution for indicating power status or operational modes.

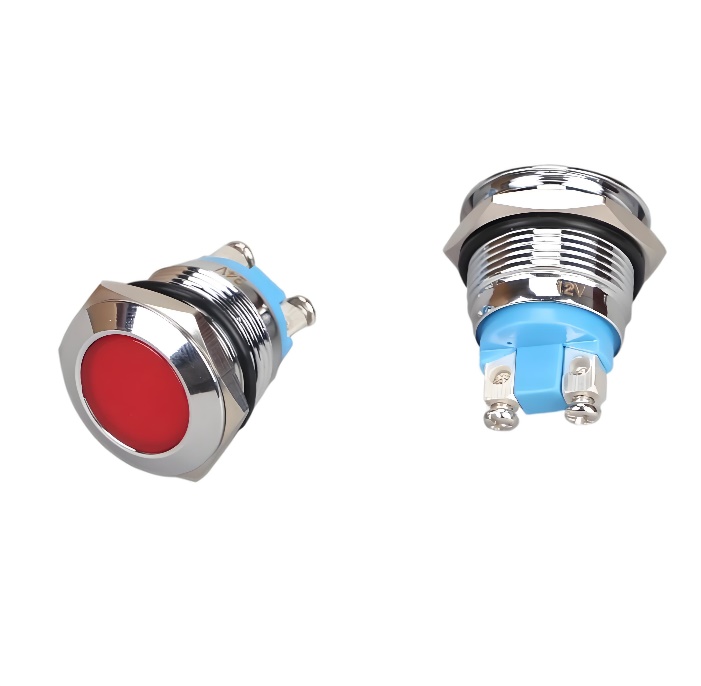

Screw Pin LED Indicator Light

Similar to pin LEDs, but with a threaded screw pin for easy mounting and secure attachment to various surfaces, including metal enclosures. This design is particularly useful in industrial applications, outdoor fixtures, and heavy-duty equipment where a sturdy connection is crucial.

Screw Pin LED Indicator Light
Stitching LED Indicator Light

Stitching LED Indicator Light

A unique type of LED indicator that incorporates a flexible wire or fiber optic cable, allowing it to be stitched or woven into fabrics, clothing, or soft surfaces. They are often used in creative lighting projects, safety gear, and wearable technology, adding a touch of illumination while maintaining flexibility and comfort.

By understanding the various types of LED indicator lights available, manufacturers and designers can choose the right options to effectively communicate information to users and enhance the user experience.

Polarity Matters: Wiring LEDs

As semiconductor devices, LEDs possess a unique characteristic known as unidirectional conductivity, which means they can only conduct current in one direction—from the anode (positive) to the cathode (negative). If connected incorrectly, they will fail to emit light and may even suffer damage.

Ensuring proper LED polarity is essential for their normal operation. Correct wiring allows LEDs to receive the appropriate voltage and current, enabling electrons and holes to recombine, releasing energy in the form of light. Conversely, reversed polarity can immediately prevent the LED from illuminating and, in the worst case, cause irreversible damage, reducing its lifespan.

To accurately identify and connect LED polarity, several methods can be employed. Visually inspecting the LED package reveals that most follow a standard convention: the longer leg is typically the anode (positive), while the shorter leg corresponds to the cathode (negative). Additionally, some LEDs may have a “+” or similar symbol marked near the anode for further clarification.

To add certainty, a multimeter can be utilized. Set to the diode testing mode, the multimeter can measure the voltage drop across the LED’s pins. A low voltage drop indicates a forward connection, allowing current to flow. Conversely, no reading or an infinite reading suggests a reverse connection, blocking current flow.

Once the LED polarity is confirmed, wiring can commence. thorough testing is crucial. Utilize a multimeter or power supply to verify that the LED is emitting light correctly and without any signs of overheating. Only after comprehensive testing can we confirm that the LED is wired with the correct polarity, ensuring long-term, reliable light emission.

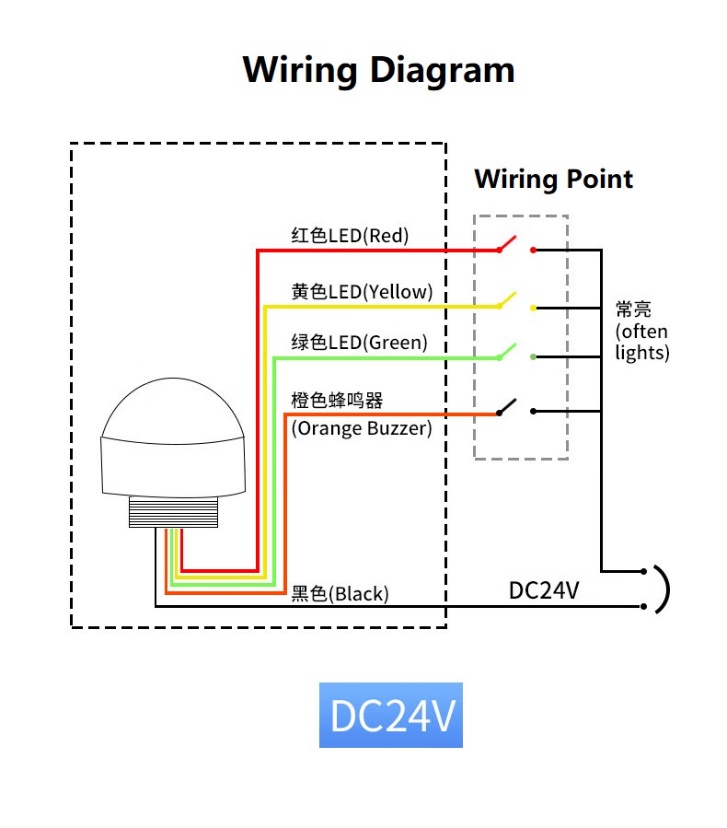

Wiring LEDs

What is the Standard Mounting Diameter for LED Indicator Lights?

The standard mounting diameter for LED indicator lights typically ranges from 6mm to 22mm. This range is commonly used across various industries and applications, ensuring compatibility with different panel sizes and designs. When selecting LED indicator lights for your project, it is important to consider the mounting diameter to ensure a proper Additionally, manufacturers often provide detailed specifications for their LED indicator lights, including information on the mounting diameter, to assist in the selection process. Be sure to carefully review these specifications and choose indicator lights that meet the requirements of your specific application.

LED Indicator Lights

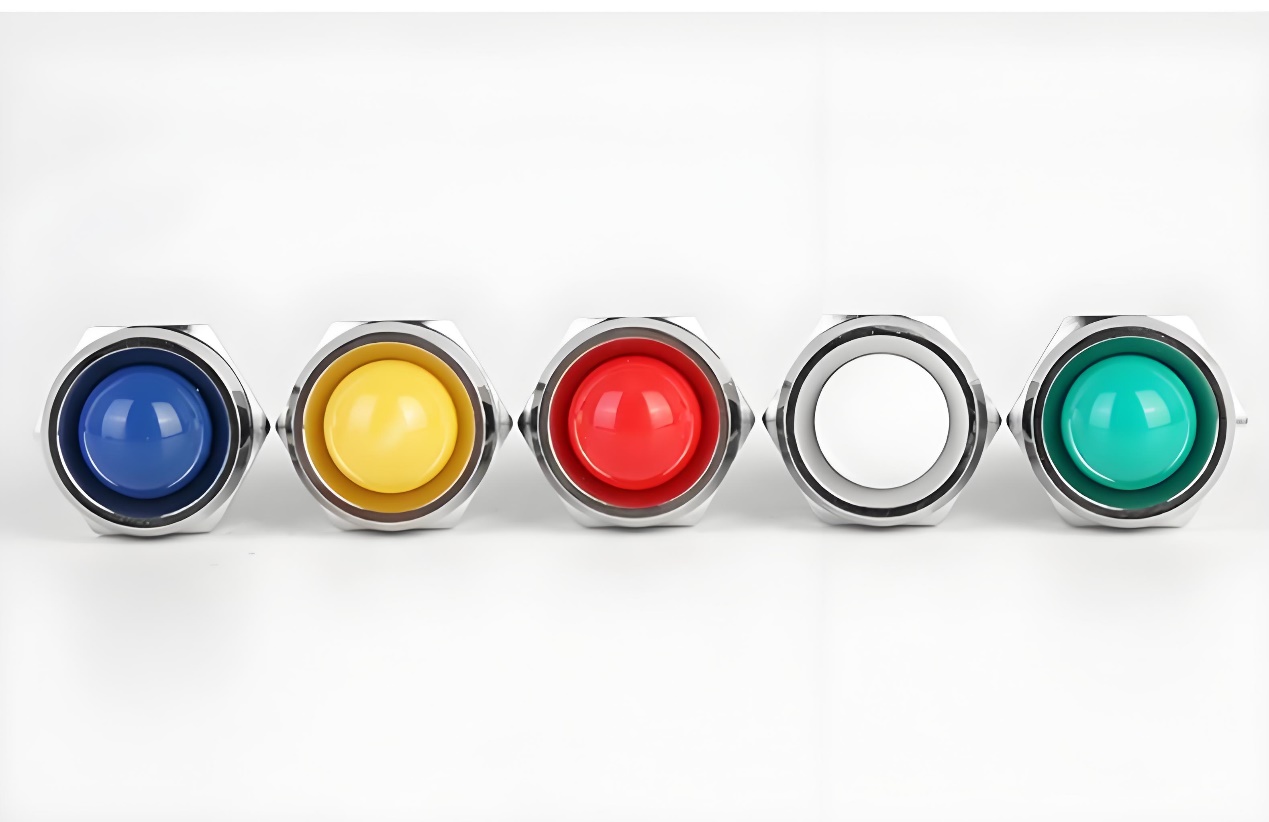

Color Options of LED Indicator Lights

LED indicator lights can provide users with important visual feedback on the status and functioning of their devices. When choosing LED indicator lights for your product, it is crucial to consider the color options available to ensure that the lights effectively convey the necessary information to users.

Color Options of LED Indicator Lights

Red LED Indicator Light: Typically signifies danger, alarms, or errors, alerting users to attention-requiring situations.

Green LED Indicator Light: Commonly used to indicate that a device is operational, functioning correctly, or in a ready state.

Yellow LED Indicator Light: Indicates a warning, caution, or that a device is in an intermediate state, requiring user awareness but not necessarily an immediate action.

Blue LED Indicator Light: Often associated with power, standby mode, or advanced features, it can also signify connectivity or data transfer in some applications

White LED Indicator Light: A versatile colour, it can be used for general illumination, status indication (such as on/off), or to blend seamlessly with device aesthetics.

Characteristics Of LED Indicators

High Brightness and Color Diversity

LED indicators are renowned for their exceptional brightness, making them clearly visible even in various lighting conditions. They are available in a wide range of colors, including basic hues such as red, green, and blue, as well as various shades created by mixing these colors. This color diversity allows LED indicators to be used for a multitude of applications, enhancing their versatility and recognition factor.

Longevity and Durability

One of the most notable characteristics of LED indicators is their incredibly long lifespan. Typically, they can operate for hundreds of thousands of hours or more, significantly reducing the need for replacements and maintenance costs. Moreover, they are highly resistant to environmental factors, enabling them to function reliably in extreme temperature ranges, making them suitable for use in diverse environments.

Electrical Efficiency

LED indicators operate efficiently with low voltage requirements, typically ranging from a few volts to 24VDC, ensuring safety and reliability in electrical systems. Furthermore, they consume minimal power, contributing to energy savings and reduced carbon emissions. This electrical efficiency makes LED indicators an attractive choice for energy-conscious applications.

Versatile Packaging and Easy Installation

LED indicators come in various packaging forms, including through-hole, surface-mount, and panel-mount types, providing flexibility to meet diverse installation needs. The panel-mount design, for instance, simplifies installation by allowing direct attachment to control panels, enhancing installation efficiency and convenience.

Clear and Versatile Indication Capabilities

LED indicators excel at providing clear visual indications of device status or signal conditions through their colour, flashing patterns, or brightness variations. Green steady light might signify normal operation, while red flashing could indicate a fault or warning. Additionally, when integrated with control systems, LED indicators can perform complex indication tasks tailored to specific processes or workflows.

Environmental Friendliness and Safety

LED indicators are often manufactured using eco-friendly materials that comply with international environmental standards like RoHS. This reduces their environmental impact and supports sustainability efforts. Moreover, their low-voltage operation and minimal heat generation contribute to their inherent safety, minimizing the risk of fire or other electrical hazards.

Common Applications of LED Indicator Lights

LED indicator lights are commonly used in a variety of applications across different industries due to their energy efficiency, durability, and versatility. These small but powerful lights are ideal for use in devices and equipment where a visual indication of the operation status is required.

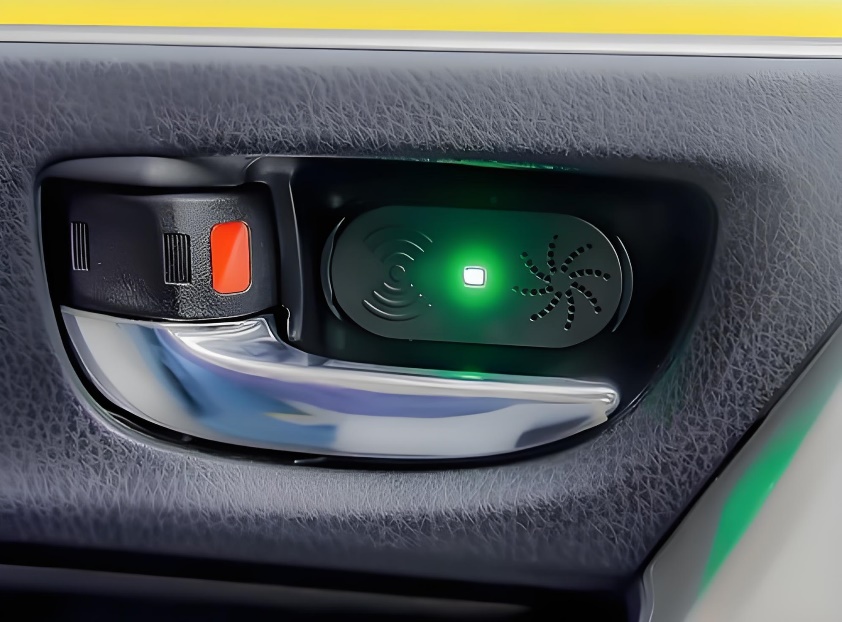

Automotive Industry

In the automotive industry, LED indicator lights are used in dashboard displays, turn signals, brake lights, and interior lighting. They provide clear and bright visuals that are easily visible to drivers and other road users, increasing safety on the roads.

Automotive Industry

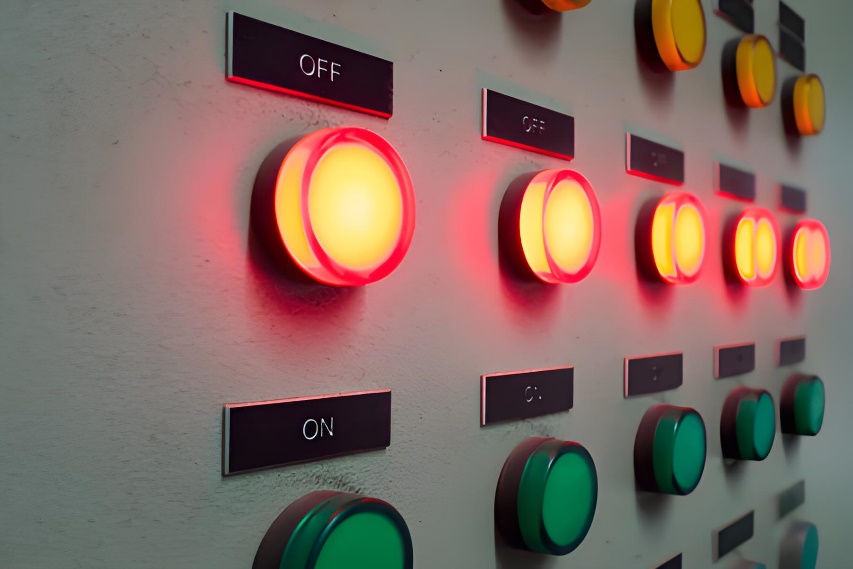

Electronics Industry

In the electronics industry, LED indicator lights are commonly found on power switches, control panels, and other devices where status notification is essential. Their low power consumption and long lifespan make them ideal for continuous use in various electronic applications.

Electronics Industry

Aviation and Aerospace Industry

In the aviation and aerospace industry, LED indicator lights are crucial for indicating different systems’ operation status, such as landing gear deployment, engine status, and navigation lights. Their reliability and durability in extreme conditions make them the preferred choice for aircraft and spacecraft applications.

These are just a few examples of the common applications of LED indicator lights. With their energy efficiency, long lifespan, and versatility, LED indicator lights continue to be a popular choice across various industries for providing clear and reliable visual indications.

Aviation and Aerospace Industry

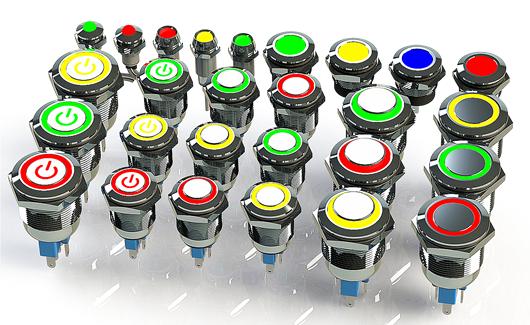

How to Choose the Right LED Indicator Light

When it comes to selecting a reliable and versatile LED indicator light, the BITUO Indicator Light series is the ideal choice. It offers a comprehensive range of LED indicators designed to meet the diverse needs of various industries and applications. With five vibrant colors to choose from – red, green, yellow, blue, and white – these LED lights offer clear and visible indications, making them ideal for status indications, warning signals, or simply adding a touch of color to your devices.

The BITUO Indicator Light series boasts a variety of mounting options to suit different installation requirements. The range includes LED lights with wires, pin-type LEDs, screw pin LEDs, and even sewing LED indicators, allowing for flexible integration into a wide range of products. Moreover, the series offers both waterproof and non-waterproof versions, ensuring that you can find the right LED indicator for any environment, from indoor use to outdoor exposure.

At BITUO, we are committed to delivering the highest quality LED indicators that not only perform reliably but also enhance the overall appearance of your devices. Our LED indicators are designed and manufactured to strict standards, ensuring durability and longevity. With three stylish bezel options – flat, round, and protruding – you can choose the one that best complements your product’s design. Whether you’re looking for a simple status indicator for your industrial equipment or a stylish accent for your consumer electronics, BITUO has the perfect LED indicator solution for you.

How to Choose the Right LED Indicator Light

Installation and Maintenance Tips

LED indicator lights are an essential component in a variety of industries and applications, providing necessary visual cues to users. Proper installation and maintenance of these lights are crucial to ensuring their longevity and functionality.

When installing LED indicator lights, it is important to follow the manufacturer’s guidelines and recommendations. This includes selecting the appropriate size and type of indicator light for your specific application, ensuring proper voltage and current requirements are met, and mounting the lights securely in place.

In terms of maintenance, regular inspection and cleaning of LED indicator lights are key to keeping them in optimal working condition. Check for any signs of damage or wear and tear, such as cracked lenses or discolored housings, and replace any faulty lights promptly.

Additionally, make sure to clean the lights regularly to remove any dirt or debris that may accumulate on the lenses, affecting their visibility. Use a mild cleanser and a soft cloth to gently wipe down the lights, being careful not to damage the delicate LED components.

By following these installation and maintenance tips, you can ensure that your LED indicator lights continue to function effectively, providing clear and reliable visual feedback in your operations.

Frequently Asked Questions (FAQs)

How is LED lighting different from other sources of light?

LEDs use a semiconductor to convert electricity into light, making them energy-efficient and long-lasting with minimal heat emission. LEDs are 75% more energy-efficient than incandescent bulbs and last 25 times longer, making them cost-effective. They provide high-quality, consistent light and offer various colors and temperatures.

Environmentally, LEDs are superior as they use less energy and contain no harmful materials like mercury. They emit little heat, reducing cooling needs and further saving energy.

What is LED indicator light working principle?

The working principle of LED indicator lights is based on the emission of light from Light Emitting Diodes (LEDs). LEDs are semiconductor devices that convert electrical energy directly into light. Inside an LED, there’s a junction formed between a p-type semiconductor and an n-type semiconductor.

When a voltage is applied across this junction, electrons from the n-type region flow towards the p-type region and combine with holes (lack of electrons) there. This recombination process releases energy in the form of photons, resulting in the emission of light. The color of the light depends on the materials used in the semiconductor layers.

In LED indicator lights, a circuit controller manages the flow of current through the LEDs, turning them on or off according to the status or input signals of the device. When an LED is turned on, it emits light, visually indicating a specific state or condition. This can range from simple on/off indications to more complex patterns like blinking or varying brightness, depending on the design and programming of the circuit controller.

How much voltage do I need to light up an LED?

To determine the right power supply for your LED(s), know the forward voltage of your LEDs. For series circuits, sum the forward voltages of all LEDs. For parallel circuits, use the forward voltage of one string. Leave a 2-volt overhead for proper driver function. For example, with a total forward voltage of 9.55V, use a 12V supply. For AC input drivers, ensure the output voltage range covers your needs, e.g., a driver rated 3-12VDC will work.

Why Choose LED Indicator Light?

LED indicator lights offer several compelling advantages, including high energy efficiency, long lifespan, durability, versatility in design and colors, rapid response time, and environmental friendliness. They are ideal for a wide range of applications from industrial equipment to consumer electronics due to their low heat generation, compact size, and easy integration into various systems.

What are the Functions of LED Indicator Lights?

LED indicator lights play a vital role in various devices and systems. They visually communicate the status of a device, instantly indicating whether it’s active, inactive, or experiencing an issue. They serve as visual alerts for important notifications, errors, or warnings, ensuring users are promptly notified of any critical information.

Additionally, they indicate whether power is on or off, simplifying troubleshooting. LED indicators also display operational modes, allowing users to quickly identify the current setting. Overall, they enhance the clarity and safety of user interfaces by making essential information instantly recognizable and accessible.

What can I do if the LED Indicator Light exhibits abnormal flickering or colour changes?

If the LED Indicator Light exhibits abnormal flickering or color changes, the following may be the potential causes:

Low Battery Level: When the device’s battery is critically low, the LED indicator may flash or display a specific color to alert the user.

Charging Issues: If the device is charging but the LED indicator does not behave as expected, check if the charger and charging cable are properly connected, and ensure the power outlet is functional.

Software or Firmware Issues: Software updates or firmware changes can affect the functionality of the LED indicator. Ensure your device has the latest software or firmware updates installed.

Hardware Malfunction: If none of the above solutions resolve the issue, it could indicate a hardware failure with the LED indicator itself. In this case, contact the device manufacturer or a repair centre for further assistance.
