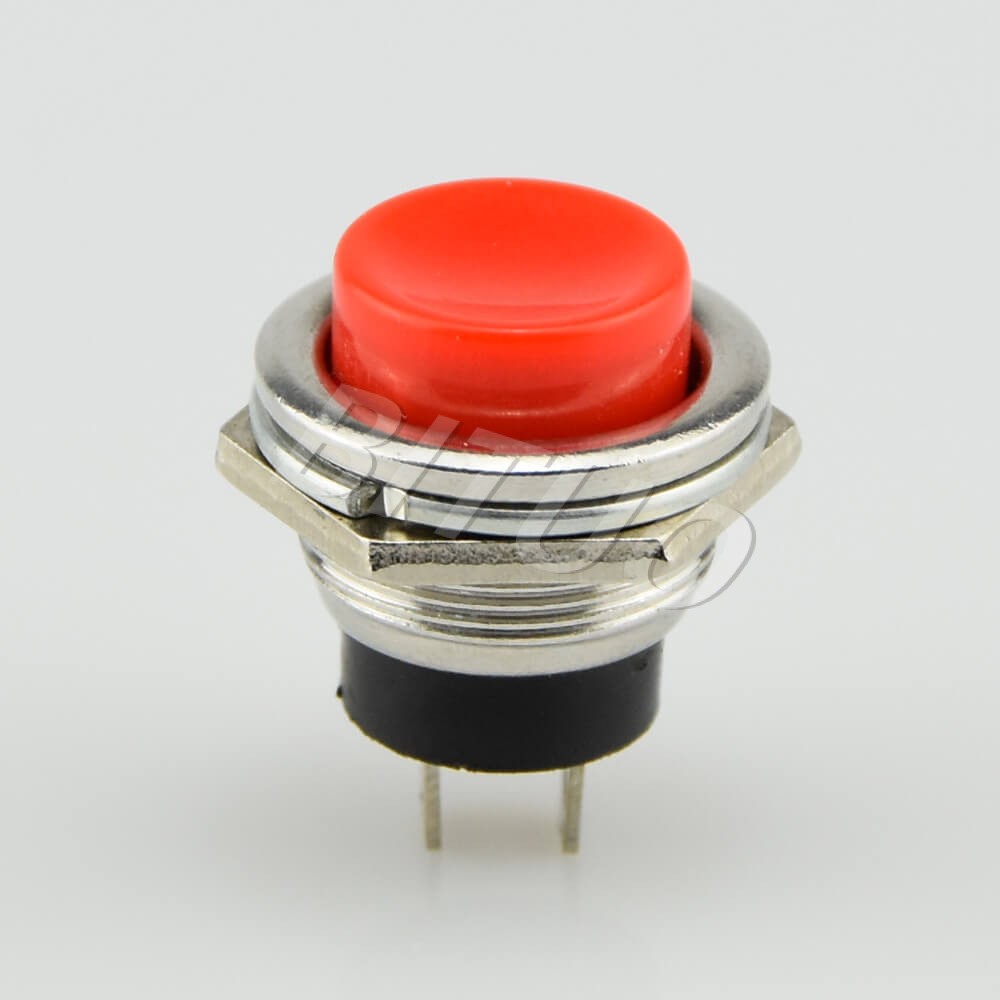

PBS-26B/26C 16mm Push Button Switch

    • Rating: 3A 250VAC
    • LED Voltage: /
    • Button Color: Red, Black, Yellow, Blue, Green etc.
    • Switch Function: Momentary
    • Operating Temperature: -25℃~+85℃
    • Connection Mode: OFF-(ON) or ON-(OFF)
    • Installation Mode: Solder
    • Panel Mount Size: 16mm
    • IP Class: IP40
    • Electrical Life: 10,000 Cycles
    • Contact Resistance: ≤50mΩ
    • Insulation Resistance: ≥1000mΩ
    • Dielectric Strength: 1500VACmin
    • OEM or ODM: Available
CE CQC TUV ROHS SGS

PBS-26B/26C 16mm Push Button Switch – Reliable Performance and Versatility

The PBS-26B/26C 16mm Push Button Switch is designed to deliver reliable performance and versatility across various applications. With a robust construction and high-quality materials, this switch ensures durability and longevity in demanding environments.

Key Specifications

Rated for 3A at 250VAC, the PBS-26B/26C supports momentary switch function, ideal for applications requiring temporary electrical connections. It operates efficiently within a temperature range of -25℃ to +85℃, making it suitable for both indoor and outdoor use.

Customizable Options

Available in multiple button colors including Red, Black, Yellow, Blue, and Green, the PBS-26B/26C allows customization to suit specific aesthetic and functional requirements. This flexibility extends to its installation mode, which is solder-based, ensuring secure and stable mounting on panels.

Performance and Durability

Engineered for durability, the PBS-26B/26C boasts an electrical life of up to 10,000 cycles. It maintains low contact resistance of ≤50mΩ and high insulation resistance of ≥1000mΩ, ensuring reliable performance over its operational lifespan.

Environmental Adaptability

With an IP40 rating, this push button switch offers protection against dust ingress, making it suitable for use in various industrial and commercial settings. Its dielectric strength of 1500VACmin further enhances safety and reliability in electrical applications.

OEM and ODM Capabilities

The PBS-26B/26C 16mm Push Button Switch supports OEM and ODM configurations, allowing for tailored solutions to meet specific customer needs. This capability ensures compatibility with diverse applications and integration into various electrical systems.

Applications

Commonly used in control panels, machinery, appliances, and automotive applications, the PBS-26B/26C excels in environments requiring reliable momentary switching operations. Its compact panel mount size of 16mm facilitates seamless integration into different equipment designs.

Conclusion

In conclusion, the PBS-26B/26C 16mm Push Button Switch combines robust construction, customizable options, and reliable performance to meet the needs of modern electrical and electronic applications. Whether used in industrial automation or consumer electronics, it provides a dependable solution for momentary switching requirements.

16mm Push Button Switch PBS-26B/26C

PBS-26B/26C is 16mm Push Button Switch. This button without LED and uses a colorful button that offering a rating of 3A 250VAC. ON-(OFF) or OFF-(ON) are available for this switch. Besides, it uses solder terminals for quick and easy installation.

All advantages of the Push Button Switch can’t be described in a few words, but they are more and more popular all over the world. Furthermore, We provide our product based on the factory price. Please contact us freely for your best quote now!
